This device is a high-quality digital monitoring product designed specifically for the security field. It uses an embedded processor and embedded operating system, combined with the latest IT field technologies, such as audio and video compression/decompression, large-capacity hard disk recording, TCP/IP network and other technologies, and the code is solidified in FLASH, making the system run more stable.

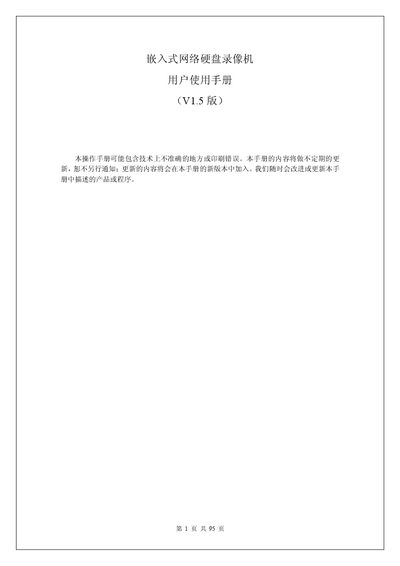

The manual describes an embedded network hard‑disk video recorder that combines DVR and DVS functions. It supports up to 16 PAL/NTSC video channels and 16 audio channels, uses H.264 video compression and OggVorbis audio encoding, and includes features such as OSD, logo, watermark, and multiple recording modes. Network capabilities include TCP/UDP/RTP streaming, PPPoE, and DHCP.
Installation steps cover hardware setup, connection of video, audio, USB, VGA, Ethernet, RS‑232/RS‑485 interfaces, and hard‑disk formatting. Operational sections explain live view, playback, alarm handling, and remote control via PC or web interface. The appendix provides a FAQ for common faults and troubleshooting tips. This manual is written in Chinese.
| Video input channels | 16 PAL/NTSC |
|---|---|
| Audio input channels | 16 |
