This document is the maintenance manual for Sony HCD-EP505, which contains detailed information about the product, such as power output, total harmonic distortion, output, speaker, etc.

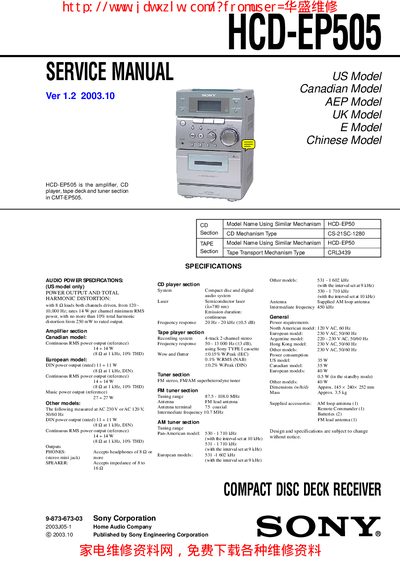

This service manual covers the HCD-EP505, the amplifier, CD player, tape deck and tuner section of the CMT-EP505 system. It includes power output specifications, power consumption, dimensions, safety requirements and laser class information. The document also lists model‑specific electrical requirements for US, Canadian, European and other regional versions.
The manual provides detailed servicing notes, safety check‑out procedures, disassembly flow, mechanical and electrical adjustments, wiring diagrams, exploded views and a complete parts list with reference numbers. Remote‑control functions, clock setting instructions and component‑replacement guidelines are also included.
| Power Consumption (US model) | 35 W |
|---|---|
| Power Consumption (European model) | 40 W |
| Standby Power Consumption | 0.5 W |
| Dimensions (W×H×D) | 145 x 240 x 252 mm |
| Mass | 3.5 kg |
| Power Requirements (US/Canadian) | 120 V AC, 60 Hz |
| Power Requirements (European/Other) | 230 V AC, 50/60 Hz |
The AC leakage from any exposed metal part to earth ground must not exceed 0.5 mA (500 µA).
The standby mode consumes 0.5 W.
The unit measures approximately 145 mm × 240 mm × 252 mm and weighs about 3.5 kg.
