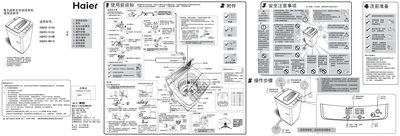

This manual covers the installation steps, water‑inlet and drainage connections, and how to adjust the machine for level placement. It also explains the functions of the control panel, button operations, and program selections for various laundry needs.
Safety guidelines, troubleshooting tips, warranty information, and technical specifications such as capacity, dimensions, and electrical requirements are included to help users operate the Haier fully‑automatic washing machine safely and efficiently. This manual is written in Chinese.
| 洗衣容量 | 5.0 kg |
|---|---|
| 脫水容量 | 5.0 kg |
| 外形尺寸 (長×寬×高) | 500 mm × 510 mm × 902 mm |
| 額定電壓/頻率 | 220 V ~ 50 Hz |
| 進水壓力範圍 | 0.03 MPa – 1.0 MPa |
| 噪音等級 | 56 dB(A) |
Check the drain valve for foreign objects such as coins or hairpins, and ensure the drain pipe is not blocked.
No, the manual advises not to use water hotter than 50 °C.
The machine must be plugged into a 220 V single‑phase three‑pole AC outlet with proper grounding.
