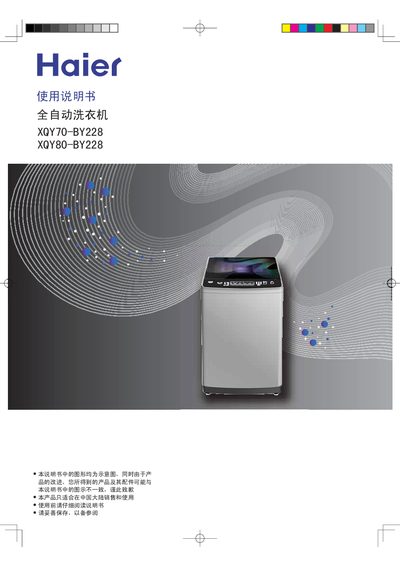

Haierautomate washing machineXQY70-BY228 XQY80-BY228 Manual

This is a Haier washing machine user manual

Brand: Haier
Category: Washing Machines
Document type: User Manual
Language: Chinese
Pages: 24
File format: PDF
File size: 6.8 MB
Published: 24 February, 2012
Updated: 30 September, 2023
MD5 checksum: BCEB0B24778A32382403A7257366C917
PDF: Haierautomate washing machineXQY70-BY228 XQY80-BY228 Manual PDF

About this manual

This manual provides detailed instructions for installing, operating, and maintaining the Haier XQY70-BY228 and XQY80-BY228 washing machines. It includes safety precautions, wiring requirements, and step‑by‑step guidance for connecting water pipes, leveling the unit, and using the control panel.

Technical data such as rated voltage, water pressure range, wash and spin capacities, noise levels, and dimensions are listed, along with warranty terms and contact information for service and support. This manual is written in Chinese.

What's inside

Safety Instructions
Installation Guide
Operation Overview
Technical Specifications
Warranty Information
Contact Information
Control Panel Overview
Leveling and Adjustment

Specifications

Rated Voltage / Frequency	220V, 50Hz
Water Pressure	0.03‑1.0 MPa
Rated Wash Capacity	7.0 kg (XQY70‑BY228), 7.8 kg (XQY80‑BY228)
Rated Spin Capacity	7.0 kg (XQY70‑BY228), 7.8 kg (XQY80‑BY228)

Frequently asked questions

What water pressure is required for the washing machine?

The machine operates with a water pressure between 0.03 and 1.0 MPa.

What is the wash capacity of each model?

The XQY70‑BY228 model washes up to 7.0 kg, while the XQY80‑BY228 model washes up to 7.8 kg.

How long is the warranty for household use?

The household washing machine is covered by a three‑year warranty.
