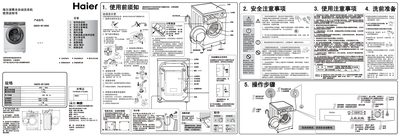

The manual begins with safety and installation guidelines, including how to connect the water inlet and drain pipes, verify water‑inlet pressure (0.001‑1.0 MPa), ensure proper grounding of the power cord, and place the machine on a level floor with a floor drain. It also explains the importance of checking for leaks and securing all fittings before first use.
Subsequent sections describe the control panel, program selection icons, special functions such as accelerated wash, night wash, and child lock, as well as cleaning the filter, routine maintenance, and troubleshooting common error codes. Warranty information and optional accessories are listed at the end. This manual is written in Chinese.
| Rated wash capacity | 5.6 kg |
|---|---|
| Rated spin capacity | 5.6 kg |
| Water inlet pressure | 0.001‑1.0 MPa |
| Maximum spin speed | 1000 rpm |
Inspect the water‑inlet and outlet connections for looseness or leakage before each wash.
The machine is designed for a water‑inlet pressure between 0.001 MPa and 1.0 MPa.
If the door‑lock icon is not lit, the door cannot be opened safely; wait until the icon lights before opening.
