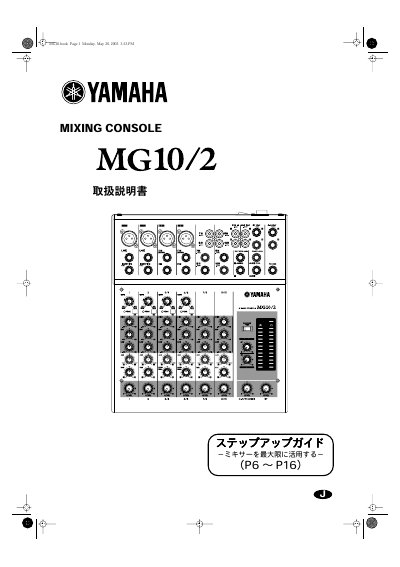

This manual begins with safety warnings and proper handling instructions for the MG10/2 mixing console, including power‑adapter requirements, water exposure cautions, and how to safely disconnect the unit. It then guides the user through power‑on procedures, basic setup, and the step‑up guide that teaches mixer fundamentals, signal flow, and level adjustment.
Further sections cover the console’s features such as the C‑R OUT main output, two AUX SENDs, a RETURN jack, phantom power for condenser microphones, and detailed descriptions of XLR and TRS input pin configurations. Service and warranty information, as well as contact details for Yamaha’s after‑sales support, are provided at the end of the document. This manual is written in Japanese.
| Number of input channels | 10 |
|---|---|
| Main output | C‑R OUT connector |
| AUX SENDs | 2 |
| RETURN | 1 |
| Phantom power | Yes (for condenser microphones) |
| Power adapter | PA‑10, AC 100 V only |
| Power input voltage | AC 100 V |
| Line inputs | TRS (balanced) and RCA (unbalanced) |
The MG10/2 provides ten input channels.
Use the supplied PA‑10 power adapter, which is rated for AC 100 V only.
Press the ON side of the power switch to turn the unit on; press the STANDBY side to turn it off.
