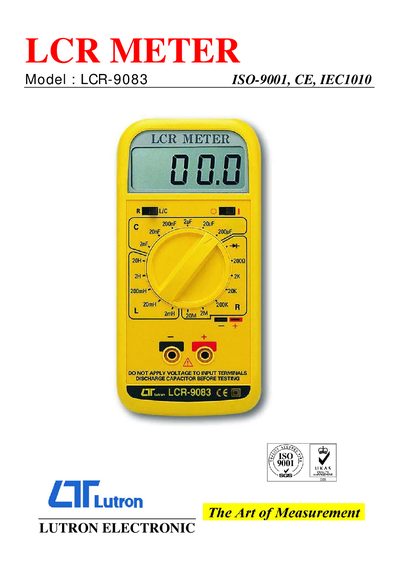

The LCR-9083 is an LCR meter produced by LUTRON ELECTRONIC. The product can measure inductance, capacitance, resistance, and diodes with a maximum range of 2 mH to 20 H, 2 nF to 200 uF, and 200 ohm to 20 M Ohm.
The Lutron LCR-9083 LCR meter measures inductance, capacitance, resistance and diode characteristics. It complies with ISO‑9001, CE and IEC1010 standards and includes an 18 mm LCD display for easy reading of values up to 1999.
The manual provides general specifications, detailed electrical ranges, power requirements, dimensions, accessories and safety guidelines. It also lists measurement accuracy, resolution and sampling time for each function, helping users obtain reliable results in laboratory or field environments. This manual is written in Chinese.
| Display size | 18 mm (0.7") LCD |
|---|---|
| Capacitance range | 2 nF to 200 µF |
| Resistance range | 200 Ω to 20 MΩ |
| Power supply | 9 V DC battery |
| Dimensions | 185 × 87 × 39 mm |
| Weight | 280 g |
| Sampling time | ≈ 0.4 s |
| Operating temperature | 0 °C to 50 °C |
| Power consumption (L&C) | ≈ 13 mA max |
It offers six capacitance ranges covering 2 nF to 200 µF.
The device is powered by a 9 V DC battery.
The package contains the instruction manual and one pair of test alligator clips.
