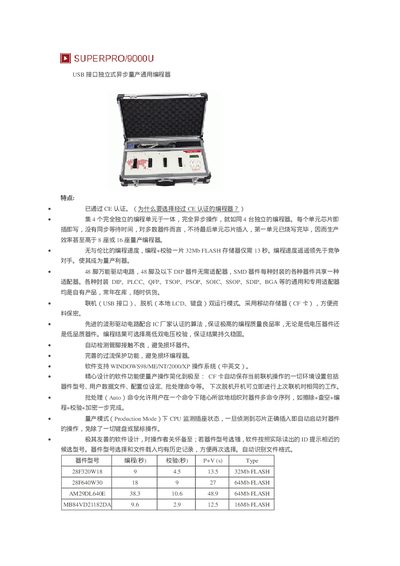

The XELTEK USB interface independent asynchronous mass production universal programmer is a device with 4 completely independent programming units. It has completely asynchronous operation, fast programming speed, and the programming + verification time of a 32Mb FLASH memory is only 13 seconds. This programmer supports multiple operating systems, including WINDOWS98/ME/NT/2000/XP operating systems, and can be connected to a USB interface or used offline.
The SuperPro 9000U is a four‑unit, fully independent programming system with asynchronous operation, allowing simultaneous programming of multiple chips. It supports a wide range of device types—including EPROM, EEPROM, FLASH (NOR/NAND), CPLD, FPGA configuration PROMs, and MCUs—across many package styles such as DIP, PLCC, QFP, and BGA. The device offers both online (USB) and offline (LCD/key) modes, with optional CF‑card storage for configuration backup.
The accompanying software runs on Windows 98/ME/NT/2000/XP (Chinese/English) and provides batch processing, production mode auto‑start, and automatic device‑type detection. Technical specifications include a 100‑240 V AC input, 24 V / 5 A DC output, USB 1.1 communication, dimensions 540 × 195 × 58 mm, and a weight of 3.1 kg. The unit is CE‑certified and priced at RMB 18 800 (tax included). This manual is written in Chinese.
| Input AC voltage | 100‑240 V, 50/60 Hz |
|---|---|
| Output DC voltage | 24 V / 5 A |
| Dimensions (H×W×D) | 540 × 195 × 58 mm |
| Weight | 3.1 kg |
| USB interface | USB 1.1 |
| Supported packages | DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, ... |
| Number of independent programming units | 4 |
| Price (incl. tax) | RMB 18 800 |
It accepts 100‑240 V AC input (50/60 Hz) and provides a 24 V / 5 A DC output.
The programmer contains four fully independent programming units.
The listed price is RMB 18 800, tax included.
