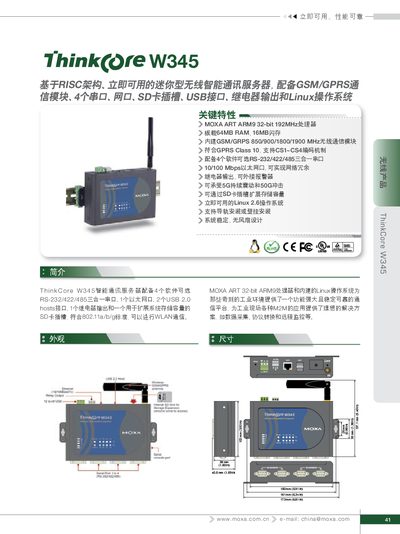

ThinkCore W345 is a mini-sized, immediately available wireless intelligent communication server based on RISC architecture, equipped with GSM/GPRS communication module, 4 serial ports, network port, SD card slot, USB interface, relay output and Linux operating system.
This manual describes the ThinkCore W345 industrial gateway, which integrates a MOXA ART ARM9 32‑bit RISC CPU, 64 MB DRAM, 16 MB flash, and built‑in GSM/GPRS communication modules. It runs a Linux 2.6 kernel and supports various network services such as TCP/UDP, HTTP, SSH, and VPN.
The document lists the mechanical dimensions (150 × 100 × 38 mm, 400 g), environmental ratings (‑10 °C to 60 °C operation, 5 G shock, 15 kV ESD), power input (12‑48 VDC), and all available interfaces, including RS‑232/422/485 three‑in‑one, 10/100 Mbps Ethernet, two USB 2.0 hosts, an SD card slot, and an RJ45 connector. Certification information (CE, TUV, UL, RoHS) and warranty details are also included. This manual is written in Chinese.
| CPU | MOXA ART ARM9 32‑bit RISC, 192 MHz |
|---|---|
| RAM | 64 MB |
| Flash | 16 MB |
| Dimensions (W×D×H) | 150 × 100 × 38 mm |
| Weight | 400 g |
| Power Input | 12‑48 VDC |
| Operating Temperature | -10 °C to 60 °C |
| Shock Resistance | 5 G |
| RS‑232/422/485 Port | Three‑in‑one serial port |
| USB Hosts | 2 × USB 2.0 |
It uses a MOXA ART ARM9 32‑bit RISC CPU running at 192 MHz.
The device operates from a 12 V to 48 V DC power supply.
The unit measures 150 × 100 × 38 mm and weighs about 400 g.
It includes a three‑in‑one RS‑232/422/485 port, one 10/100 Mbps Ethernet port, two USB 2.0 host ports, an SD card slot, and an RJ45 connector.
