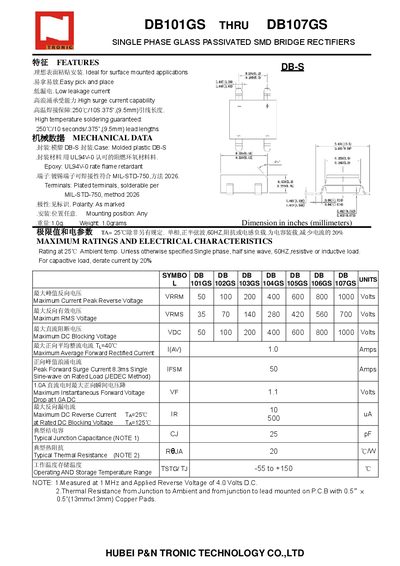

This document is the datasheet of HUBEI P&N TRONIC TECHNOLOGY CO.,LTD DB-S DB101GS THRU DB107GS SINGLE PHASE GLASS PASSIVATED SMD BRIDGE RECTIFIERS. It mainly introduces the features of the product, including ideal surface mounting, easy pick and place, low leakage current, high surge current capability, high temperature soldering guarantee.
The Tronic DB101GS‑DB107GS series are single‑phase glass‑passivated SMD bridge rectifiers designed for surface‑mounted applications. They feature low leakage current, high surge capability, and UL94V‑0 flame‑retardant epoxy housing.
The document provides mechanical data, maximum ratings, and characteristic curves for each model, including average forward current, peak surge current, reverse voltage limits, junction capacitance, and thermal resistance. Dimensions and weight are also listed for PCB mounting.
| Maximum Average Forward Current | 1.0 A |
|---|---|
| Typical Junction Capacitance | 25 pF |
| Typical Thermal Resistance | 20 °C/W |
| Weight | 1.0 g |
| Lead Length (soldering) | 0.375 in (9.5 mm) |
The maximum average forward current is 1.0 A.
Typical junction capacitance is 25 pF.
