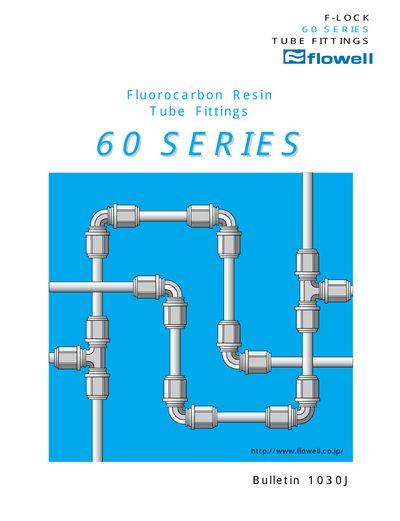

This document introduces the F-LOCK 60 series tube fittings from Flowell Corporation, which feature a unique construction and sealing system. They are available in high temperature and middle temperature models, suitable for various levels of semiconductor manufacturing processes.
The 60 Series tube fittings are flare‑type fluorocarbon resin components designed for semiconductor manufacturing. They feature a unique body and nut construction that minimizes fluid trapping, leakage and the need for re‑tightening.
The manual covers construction details, part numbers, pressure‑temperature ratings, ordering procedures, installation methods (cold and hot flaring) and safety guidelines for maintenance in harsh chemical and high‑pressure environments.
| Sealing mechanism | Flare type |
|---|---|
| Maximum operating pressure | ≥1.2 MPa across whole temperature range |
| Body material | PFA fluorocarbon resin |
| Nut material | PFA fluorocarbon resin |
| Applicable tube material | PFA/PTFE fluorocarbon resin |
| Applicable tube size range | 1/8" – 1" (3 mm – 25 mm) |
It uses a flare‑type sealing mechanism.
Orders must specify the part number for each fitting.
Some sizes maintain at least 1.2 MPa across the entire temperature range.
