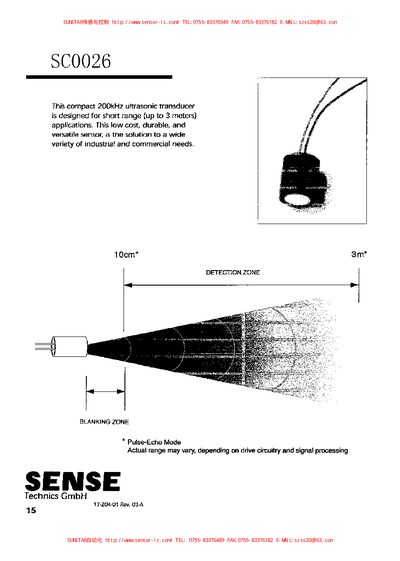

The Sense SC0026 is a compact 200 kHz ultrasonic transducer designed for short‑range (up to 3 m) applications in industrial and commercial settings. It operates in pulse‑echo mode and offers a detection zone and a blanking zone for precise measurements.
The datasheet lists the sensor's electrical and mechanical specifications, including operating frequency, transmit/receive sensitivity, parallel resistance, beamwidth, maximum driving voltage, temperature range, weight, and housing materials. All values are typical at 22 °C and may change without notice.
| Best Operating Frequency | 200 kHz ± 4 % |
|---|---|
| Min. Transmit Sensitivity | 105 dB re 1 µPa/V |
| Min. Receive Sensitivity | -174 dB re 1 V/Pa |
| Min. Parallel Resistance | 180 Ω ± 30 % |
| Beamwidth (-3 dB full angle) | 14° ± 2° |
| Maximum Driving Voltage | 500 Vpp (2 % duty cycle tone burst) |
| Operating Temperature | -40 °C to 90 °C |
| Weight | 6 g |
| Housing Material | Glass filled polyester |
| Acoustic Window Material | Glass reinforced epoxy |
The transducer operates best at 200 kHz with a tolerance of ± 4 %.
It can be driven up to 500 Vpp with a 2 % duty‑cycle tone burst.
The device is rated for operation from –40 °C to 90 °C.
The housing is made of glass‑filled polyester and the acoustic window is glass‑reinforced epoxy.
