Sense SC0026 Ultrasonic Transducer Datasheet
The Sense SC0026 is a compact 200 kHz ultrasonic transducer designed for short‑range (up to 3 m) applications in industrial and commercial settings. It operates in pulse‑echo mode and offers a detection zone and a blanking zone for precise measurements.
The datasheet lists the sensor's electrical and mechanical specifications, including operating frequency, transmit/receive sensitivity, parallel resistance, beamwidth, maximum driving voltage, temperature range, weight, and housing materials. All values are typical at 22 °C and may change without notice.
Covers: Specifications · Materials · Operating Temperature · Detection Zone · Blanking Zone · Transmit/Receive Voltage Response
Sense SC0027 Ultrasonic Transducer Product Leaflet
The Sense SC0027 is a 125 kHz ultrasonic transducer designed for medium‑range process control, offering a detection zone up to 7 m and a sealed polyester housing.
Key specifications include a best operating frequency of 125 kHz ± 4 %, transmit sensitivity of 107 dB re 1 µPa/V, receive sensitivity of –169 dB re 1 V/µPa, beamwidth 12° ± 2°, maximum driving voltage 800 V (2 % duty cycle), operating temperature –40 °C to 90 °C, and a weight of 20 g.
Covers: Description · Detection Zone · Specifications · Materials · Voltage Response · Contact Information

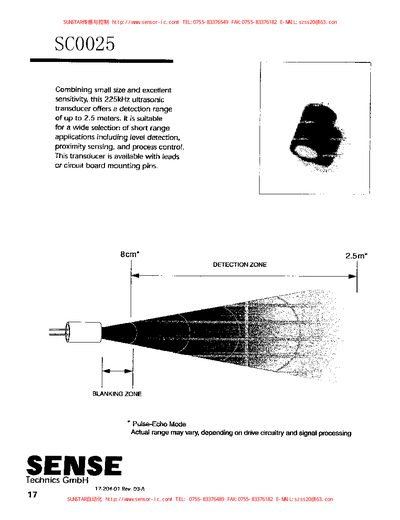

Technics SC0025 Ultrasonic Transducer Datasheet
The SC0025 is a 225 kHz ultrasonic transducer designed for short‑range level detection, proximity sensing, and process control. It provides a detection zone of up to 2.5 m and is available with leads or circuit‑board mounting pins.
Key specifications include a best operating frequency of 228 kHz ± 4 %, transmit sensitivity of 101 dB re 1 µPa/V, receive sensitivity of –180 dB re 1 V/µPa, and a maximum driving voltage of 500 Vpp (2 % duty cycle). The device operates from –40 °C to 90 °C, weighs 4 g, and features a glass‑filled polyester housing with a glass‑reinforced epoxy acoustic window.
Covers: Detection Zone · Blanking Zone · Specifications · Impedance · Materials · Operating Temperature
Latest Sense manuals
Sense SC0026 Ultrasonic Transducer Datasheet
Datasheet 4 pages · 310 KB · ENThe Sense SC0026 ultrasonic transducer datasheet provides key specifications such as 200 kHz frequency, sensitivity, voltage rating, temperature range and…
Sense SC0027 Ultrasonic Transducer Product Leaflet
Product Leaflet 4 pages · 282 KB · ENThe Sense SC0027 ultrasonic transducer provides a 125 kHz detection range up to 7 m with detailed specifications and usage notes.
Technics SC0025 Ultrasonic Transducer Datasheet
Datasheet 4 pages · 276 KB · ENThe SC0025 ultrasonic transducer from Technics operates at 225 kHz with a detection range up to 2.5 m and includes full technical specifications.
Which document do I need?
Datasheet
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in Sense manuals
What is the best operating frequency of the Sense SC0026 transducer?
The transducer operates best at 200 kHz with a tolerance of ± 4 %.
What is the maximum driving voltage the sensor can handle?
It can be driven up to 500 Vpp with a 2 % duty‑cycle tone burst.
What is the detection range of the Sense SC0027 transducer?
It offers a detection range of up to 7 meters.
What is the operating frequency of the SC0027?
The best operating frequency is 125 kHz ± 4 %.
What is the detection range of the SC0025 transducer?
The SC0025 provides a detection range of up to 2.5 meters.
At what frequency does the SC0025 operate?
It operates as a 225 kHz ultrasonic transducer, with a best operating frequency of 228 kHz ± 4 %.
