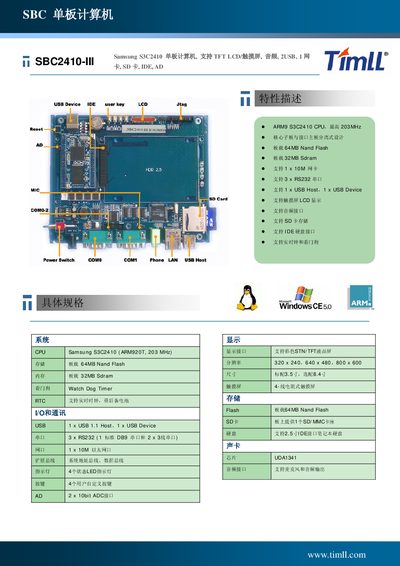

The SBC2410-III is a single-board computer developed by Timll Technology based on the S3C2410 processor. Its maximum frequency is 203MHz. It has 64MB Nand Flash storage and 32MB Sdram memory. It supports 1 x 10M network card, 3 x RS232 serial ports, 1 x USB Host and 1 x USB Device interface. It also has 4 status LEDs and 4 user-defined buttons.
The TIMLL SBC2410 is a single‑board computer based on the Samsung S3C2410 (ARM920T) CPU running at 203 MHz. It integrates 64 MB NAND flash, 32 MB SDRAM, and supports TFT LCD or touch panel displays, audio, USB, Ethernet, IDE, SD/MMC, ADC and GPIO.
The manual lists the hardware configuration, power requirements (12 V × 0.3 A typical), operating temperature (0 ~ 60 °C), dimensions (135 × 169 mm for the main board), and provides wiring details for the USB, serial, and Ethernet interfaces, as well as accessories such as the LCD modules and hard‑disk options. This manual is written in Chinese.
| CPU | Samsung S3C2410 (ARM920T) 203 MHz |
|---|---|
| Flash Memory | 64 MB NAND Flash |
| RAM | 32 MB SDRAM |
| USB Ports | 1 × USB Host, 1 × USB Device |
| Ethernet | 1 × 10 M Ethernet port |
| Serial Ports | 3 × RS232 (1 DB9, 2 3‑wire) |
| ADC | 2 × 10‑bit ADC |
| Typical Power Consumption | 12 V × 0.3 A |
| Operating Temperature | 0 ~ 60 °C |
| Board Size | 135 × 169 mm |
It uses a Samsung S3C2410 (ARM920T) processor running at 203 MHz.
The board provides one USB Host port and one USB Device port.
Typical power consumption is 12 V at 0.3 A.
It includes 64 MB NAND flash, 32 MB SDRAM, an SD/MMC slot, and an IDE hard‑disk connector.
