Light-weight, low-cross section, compact positioning table made of high-strength aluminum alloy. Its driving mechanism adopts a precision-ground ball screw to assure high reliability high-precision positioning. A C-Lube lubrication part built in the linear motion rolling guide and the ball screw enables long-term maintenance-free operation.

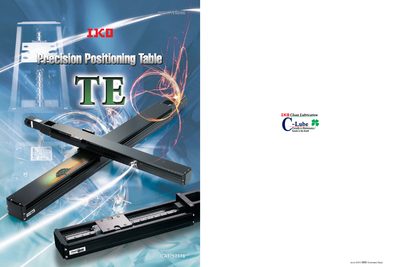

This manual describes the IKO Precision Positioning Table TE series, including the TE60 and TE86 models. It covers mechanical dimensions, motor and sensor options, and performance data such as accuracy, speed, and load capacity.
The document also explains the C‑Lube lubrication system, wiring and connector details, and provides part numbers for motors, drivers, and accessories from Yaskawa, Panasonic, Mitsubishi, and Oriental Motor. Contact information for IKO worldwide offices is included at the end.
| Bed width (TE60) | 66 mm |
|---|---|
| Bed width (TE86) | 86 mm |
| Bed length options | 150‑600 mm (TE60), 340‑940 mm (TE86) |
| Ball screw lead (TE60) | 5 mm |
| Ball screw lead (TE86) | 20 mm |
| Maximum speed (standard motor) | up to 3000 mm/s |
| Maximum loading mass (TE60) | 30 kg |
| Sensor configuration | Up to four sensors (limit, pre‑origin, origin) |
| Lubrication system | C‑Lube linear way, maintenance‑free |
With the standard motor the tables can reach up to 3000 mm/s.
The tables use a C‑Lube lubrication part built into the linear motion rolling guide and ball screw for maintenance‑free operation.
Up to four sensors (limit, pre‑origin, and origin sensors) can be selected.
The table can be equipped with motors from Yaskawa, Panasonic, Mitsubishi Electric, and Oriental Motor.
