ATX612 multi gas detector (LEL/CH4, O2, H2S, CO, SO2, NO2, Cl2, ClO2) can continuously detect up to four gases, including combustible gases, oxygen and two toxic gases. The instrument is equipped with an internal sampling pump, which is suitable for closed space detection and various environmental gas detection.
The ATX612 portable multi‑gas detector can continuously monitor up to four gases, including combustible gases, oxygen, and two selectable toxic gases such as carbon monoxide or chlorine. It features an internal sampling pump, optional dilution attachment, high‑brightness alarm light and a 90 dB audible alarm, and optional data‑logging and industrial hygiene functions.

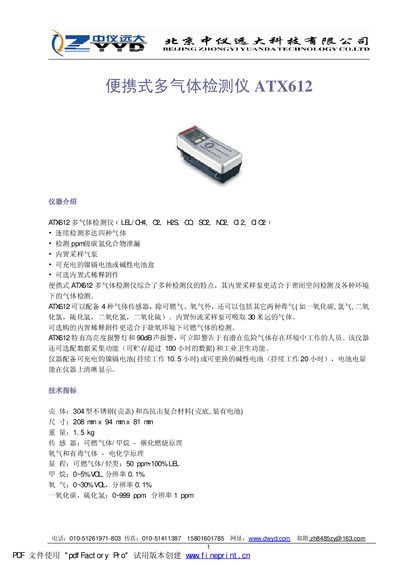

The instrument is built with a 304 stainless‑steel cover and high‑impact composite housing, weighs 1.5 kg, and measures 208 mm × 94 mm × 81 mm. It can be powered by a rechargeable nickel‑metal battery (≈10.5 h runtime) or replaceable alkaline batteries (≈20 h runtime), with battery level displayed on the device. This manual is written in Chinese.
| Shell material | 304 stainless steel (cover) and high‑impact composite (bottom) |
|---|---|
| Dimensions | 208 mm × 94 mm × 81 mm |
| Battery options | Rechargeable nickel battery (10.5 h) or replaceable alkaline battery (20 h) |
| Sampling flow rate | 0.5 L/min (500 mL/min) |
It can continuously detect up to four gases simultaneously.
The rechargeable nickel battery provides about 10.5 hours of continuous operation.
The built‑in pump delivers a sampling flow of 0.5 L/min (500 mL/min).
