The ZYUTA-2000A ultrasonic tester provides high‑precision measurement with two channels, USB 2.0 high‑speed data transfer, and optional display sizes of 5.6, 8.9 or 10.1 inches. It supports various attenuation settings and a gain of 66 dB, making it suitable for concrete, rock and other non‑metallic material testing.

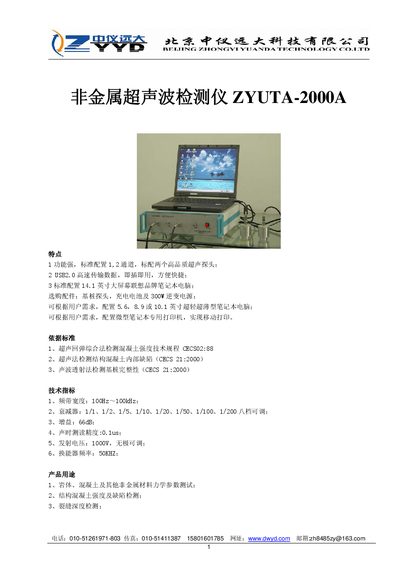

The instrument complies with Chinese standards CRCS02:88 and CCECS 21:2000 for concrete strength and reinforcement detection. Data analysis is performed on a Windows platform using supplied software, and the device can be powered by a 300 W inverter source. This manual is written in Chinese.
| Frequency range | 100 Hz – 100 kHz |
|---|---|
| Gain | 66 dB |
| Attenuation settings | 1/1, 1/2, 1/5, 1/10, 1/20, 1/50, 1/100, 1/200 |
| USB interface | USB 2.0 high‑speed data transfer |
| Display size options | 5.6, 8.9, or 10.1 inches |
| Power source | 300 W inverter |
It operates from 100 Hz up to 100 kHz.
Data can be transferred via a USB 2.0 high‑speed connection.
The device can be equipped with 5.6‑inch, 8.9‑inch, or 10.1‑inch screens.
It offers a gain of 66 dB.
