BRILLIANT CRYSTAL CM24064-2 is a graphic dot matrix LCD display module with features such as 240×64 full dot matrix LCD display and the ability to display 8×4 Chinese characters.
The CM24064-2 is a graphic dot‑matrix LCD module featuring a 240 × 64 pixel display. It supports both graphic images and 8 × 4 (16 × 16) Chinese characters. The module includes an 8‑bit parallel data bus and eight control lines for interfacing with a CPU.

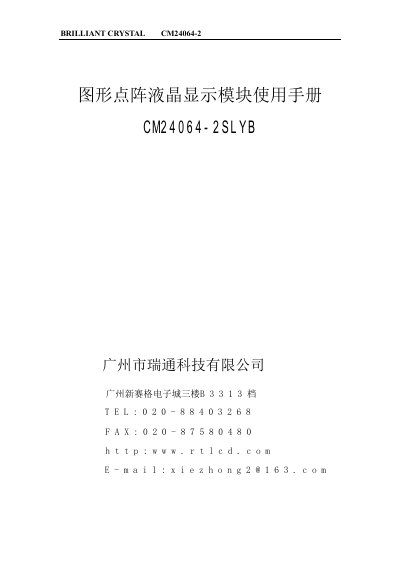

The manual provides technical parameters such as power supply requirements, operating temperature range, backlight type, duty cycle, package type, and physical dimensions, as well as a pin‑out description for external connections. This manual is written in Chinese.
| Resolution | 240 × 64 dots |
|---|---|
| Display mode | STN yellow‑green |
| Backlight | LED yellow‑green |
| Operating temperature | -10 °C to +55 °C |
| Storage temperature | -20 °C to +70 °C |
| Duty cycle | 1/64 |
| Package type | SVT |
| Viewing angle | 6:00 |
| Module size | 180 × 65 × 9.5/13.8 mm |
| Viewing area | 132 × 39 mm |
| Dot pitch | 0.04 × 0.04 mm |
| Dot size | 0.49 × 0.49 mm |
It provides a 240 × 64 dot matrix display.
The backlight is an LED with yellow‑green color.
It can operate from –10 °C up to +55 °C.
