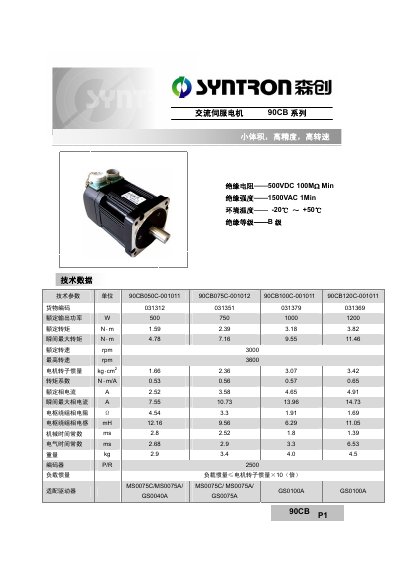

90CB series AC servo motors are small, high-precision, high-speed motors. The power range is 500W-1200W, the speed is 3000-3600rpm, and the inertia is 1.66-3.42kg·cm2. The motor uses a 2500-line encoder and the wiring is an aviation plug.
This manual covers the technical data of the 90CB series AC servo motors, including rated power, torque, speed, weight, and encoder resolution. It also lists model codes such as 90CB050C-001011 and 90CB120C-001011 with their corresponding specifications.
Installation notes describe proper handling of the motor shaft and coupling, wiring connections for power and encoder signals, and detailed instructions for connecting the optional brake unit. Contact information for Hollysys Electric and its regional offices is provided at the end of the document. This manual is written in Chinese.
| Rated output power (90CB050C) | 500 W |
|---|---|
| Rated torque (90CB050C) | 1.59 N·m |
| Rated speed | 3000 rpm |
| Maximum speed | 3600 rpm |
| Weight (90CB050C) | 2.9 kg |
| Encoder resolution | 2500 P/R |
The 90CB050C model has a rated output power of 500 W.
Connect the brake control lines to a 24 VDC power supply (2 A) without regard to polarity.
