The electric regulating valve of ZDSJP (M) series produced by Anhui Tiankang (Group) Co., Ltd. has the characteristics of small size, light weight, simple wiring, large flow rate and high adjustment accuracy. It is widely used in industrial process automatic control systems in the electric power, petroleum, chemical industry, metallurgy, environmental protection, light industry, teaching and scientific research equipment industries.
The ZDSJP(M) series electric regulating valve is a compact, lightweight, electronically controlled valve designed for industrial process automation in power, petrochemical, chemical, metallurgical and environmental sectors. It can be equipped with low‑flow‑resistance straight‑through or sleeve bodies and uses German‑imported PSL series linear actuators (or optional domestic QSL, ZAZ, DKZ, 3810, 3410 actuators). The valve accepts 4‑20 mA DC or 1‑5 V DC control signals and a single‑phase power supply.

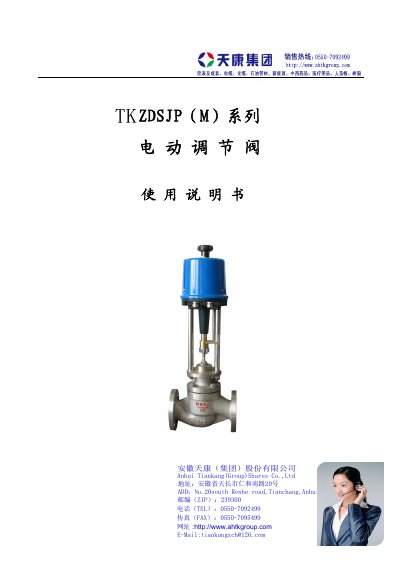

The manual covers product overview, technical data, installation guidelines, wiring, adjustment, routine maintenance, fault analysis and repair procedures, as well as transport, storage and ordering information. It includes detailed tables of dimensions, pressure ratings, material options and flow coefficients to aid proper selection and integration. This manual is written in Chinese.
| Nominal size (DN) | 20‑200 mm |
|---|---|
| Nominal pressure (PN) | 1.6, 4.0, 6.4 MPa |
| Control signal | 4‑20 mA DC or 1‑5 V DC |
| Valve body material options | Carbon steel, stainless steel, cast iron |
| Working temperature range | -40 °C to 250 °C (steel & stainless steel) |
The valve can be driven by a 4‑20 mA DC or a 1‑5 V DC input signal.
