FB series plastic control boxes are available in yellow and light beige colors. The dimensions are 76mm, 140mm and 200mm, and are IP65 protected. They can be used to install a variety of 22mm control units and are suitable for various industrial control applications.

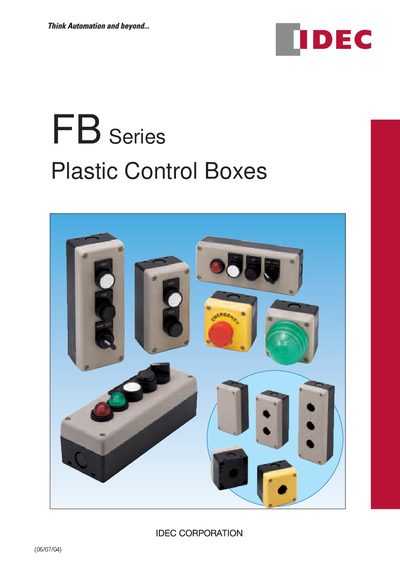

The IDEC FB Series plastic control boxes provide lightweight, IP65‑rated enclosures for installing IDEC control units. They are available in 76 mm, 140 mm and 200 mm widths and can be supplied with or without mounting holes for custom layouts.
The guide covers specifications, mounting methods (front panel, rear panel, hook, frame), accessories, cable‑gland installation, DIN‑rail adapters and safety precautions, helping users correctly install and secure the boxes in indoor applications.
| Ambient temperature | -25 to +60°C |
|---|---|
| Relative humidity | 45 to 85% RH |
| IP rating | IP65 (when IP65 control units are installed) |
| Protection class | Class II (when class II control units are installed) |
The boxes are rated IP65 when IP65‑rated control units are installed.
Front panel, rear panel, hook, and frame mounting options are provided.
They operate from –25 °C up to +60 °C.
Recommended tightening torque is 1.3–2.0 N·m depending on the screw type.
