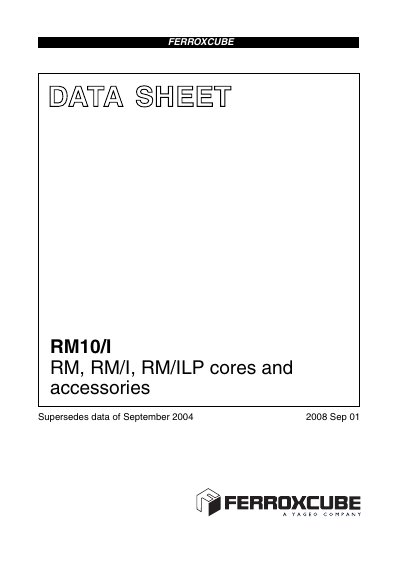

Ferroxcube RM10/I Core Set Datasheet

About this manual

The RM10/I series from Ferroxcube includes core sets for filter, transformer and power applications. Effective core parameters such as core factor, volume, length, area and mass are listed, along with clamping force specifications for AL measurements.

Additional sections describe coil former materials, pin materials, temperature ratings, solderability, and mounting clip specifications. The document also provides data‑sheet status definitions and a disclaimer regarding life‑support use.

What's inside

• Effective core parameters
• Core sets for filter applications
• Core sets for general purpose transformers and power applications
• Properties of core sets under power conditions
• Coil former specifications
• Mounting parts
• Data sheet status definitions
• Disclaimer
