The MFX-2225/2725 is a multifunctional all-in-one printer from Canon that can scan, copy, print, and fax. The machine has a maximum scan/print size of A3, a print speed of 27 ppm/22 ppm, and a built-in touch screen display. It supports voice guidance, macro keys, RADF, platen glass, and has a paper capacity of 600 sheets (including a 100-sheet Bypass Tray). The maximum paper capacity is 2,100 sheets, and the machine has 32MB of memory and supports 72 hours of backup power. It can be connected to a wired network (10Base-T/100Base-TX TCP/IP) or USB 2.0. It uses an electrophotographic printing/LED single-color CCD scanning technology.

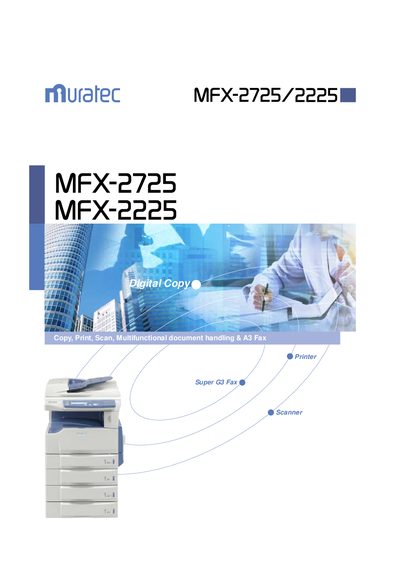

This manual covers the full range of functions of the Muratec MFX-2725/2225 multifunction copier, including copying, printing, scanning, and faxing. It explains how to use Voice Guidance, the touch‑panel display, and Quad Access technology to improve workflow and reduce downtime.
Technical specifications, network options, and consumable information are listed, along with safety warnings and regulatory notices. The document also details optional accessories such as the Network Interface Card and provides troubleshooting tips for common issues like paper jams and fax errors.
| First Copy Output Time | 5.6 seconds |
|---|---|
| Warm Up Time | 15 seconds |
| Print Resolution | 600 × 600 dpi |
| Scan Resolution | 600 / 360 / 200 dpi |
| Modem Speed | 33.6 kbps |
| Power Supply | 220‑240 VAC, 50/60 Hz |
| Dimensions (MFX‑2725) | 600.3 × 686.97 × 758.8 mm (W × H × D) |
| Weight | 57.8 kg |
| Connectivity | USB 2.0 and optional Ethernet (10Base‑T/100Base‑TX) |
The first copy is produced in 5.6 seconds.
The copier includes a USB 2.0 interface and can be equipped with an optional Ethernet network card.
