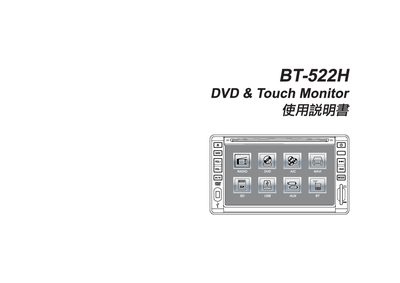

This manual explains safe usage of the BT-522H DVD Touch Monitor, including precautions for low‑temperature operation, cleaning of discs, and handling of the device in a vehicle environment. It also details the functions of the main screen, navigation button, volume controls, and other dedicated keys.
The guide covers supported media formats for USB and SD cards, describes how to switch between DVD playback and navigation modes, and lists the technical specifications such as power requirements, operating temperature range, screen size, dimensions, and weight. This manual is written in Japanese.
| Screen size | 6.5 inches |
|---|---|
| Power supply voltage | +12 V (10.8‑15.6 V) |
| Maximum current consumption | 13 A |
| Operating temperature range | -20 °C to +70 °C |
| Storage temperature range | -40 °C to +85 °C |
| Dimensions (W × H × D) | 178 mm × 100 mm × 189 mm |
| Weight | 2.0‑25 kg |
| Internal audio output level | ≤20 mV |
| Supported file formats (USB/SD) | mp3, jpg, mpg, mpeg |
The device supports audio files in mp3 format and image/video files in jpg, mpg, and mpeg formats.
The monitor requires a +12 V power source, with an acceptable voltage range of 10.8 V to 15.6 V.
