SECONS OBDTester User Manual

OBD Tester user manual is the user manual of OBD Tester product, which introduces the features and usage methods of the product.

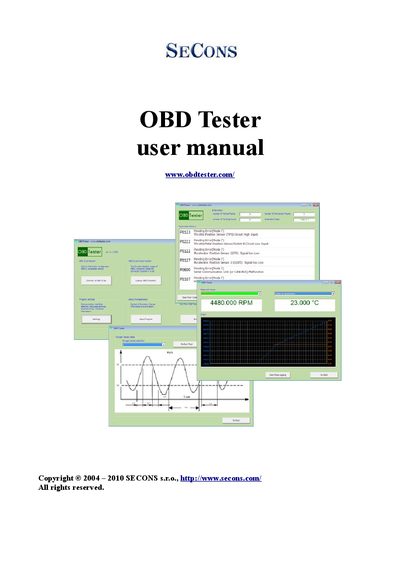

SECONS OBDTester User Manual - cover page
Brand
OBD
Category
Automotive supplies
Document type
User Manual
Language
English
Pages
23
File format
PDF
File size
688 KB
Published
02 February, 2012
Updated
30 September, 2023
MD5 checksum
9C656145A4567CE5B816AA878D30A29D
PDF
SECONS OBDTester User Manual PDF

About this manual

This manual introduces the SECONS OBDTester system, which includes the ELM‑USB diagnostic interface and accompanying software. It describes the supported OBD‑II protocols, connector details, and the range of diagnostic modes available (Mode 1‑10).

Installation steps for the software and drivers are provided, followed by guidance on connecting the hardware, configuring ports, and activating a professional license. The document also covers the full set of diagnostic functions, ECU readiness information, and a troubleshooting section for common connection issues.

What's inside

  • Introduction
  • Software and Drivers Installation
  • First Steps
  • Supported OBD‑II Protocols and Modes
  • Diagnostic Functions
  • ECU Information and Readiness
  • Software Settings and License Activation
  • Troubleshooting

Specifications

Supported OBD‑II protocolsSAE J1850 PWM, SAE J1850 VPW, ISO‑9141‑2, ISO‑14230‑4 (KWP2000), ISO‑15765‑4 (CAN‑BUS)
Installation space required4.5 MB
LED indicator statusGreen when powered, orange when communicating

Frequently asked questions

How can I enable Expert mode for manual commands?

Open the Settings menu, go to the Debug section, and click the "Expert mode enable" option; this activates the Manual command button.

Download PDF (688 KB)
