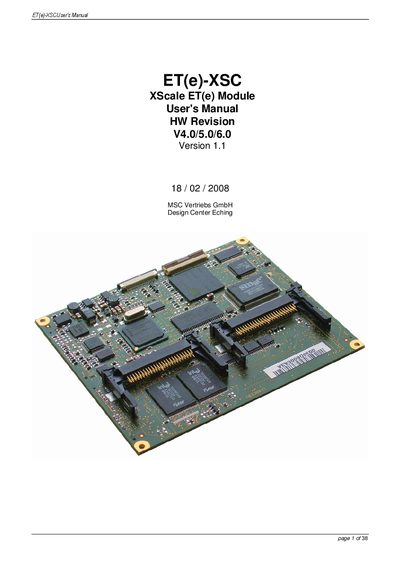

ET(e)-XSC is an XScale ET(e) module. This document provides technical information, specifications, and features of the product, as well as EMC rules and important information.
This manual describes the ET(e) XSC XScale module, a highly integrated Intel XScale PXA255 CPU board. It outlines the functional range, optional features, and the hardware interfaces such as ISA, USB, Ethernet, audio, and video connectors.
Technical sections cover the processor, memory, flash, power requirements, watchdog timer, interrupt mapping, and debugging options, including JTAG. The document also lists supported Windows CE 4.2 .NET drivers and provides mechanical drawings and connector pinouts.
| CPU | Intel XScale PXA255 (200 MHz / 400 MHz) |
|---|---|
| On‑board SDRAM | Up to 64 MByte |
| On‑board Flash | Up to 64 MByte |
| Supply Voltage | +5 V ±5 % |
| Supply Current (200 MHz) | 0.40 A |
| Supply Current (400 MHz) | 0.43 A |
| Operating Temperature | -40 °C to +85 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity (operating) | 10 % – 95 % RH |
| Dimensions | 95 mm × 114 mm × 12 mm |
| Ethernet Controller | SMSC LAN91C111 or LAN91C613 |
| Audio Codec | National LM4548 (AC97) |
| USB Host Ports | 2 (USB 2.0 compatible) |
The module tolerates a supply voltage of +5 V with a ±5 % tolerance.
The module operates from –40 °C up to +85 °C (extended temperature range).
The Ethernet controller is an SMSC LAN91C111 or LAN91C613.
