Philips HTS3172 is a home theater system that supports DTS, Dolby Digital and Dolby Pro Logic II surround sound, built-in advanced D class power amplifier, supports USB media connection and MP3 Link, can play USB flash disk and portable media player content and play almost any type of disc.

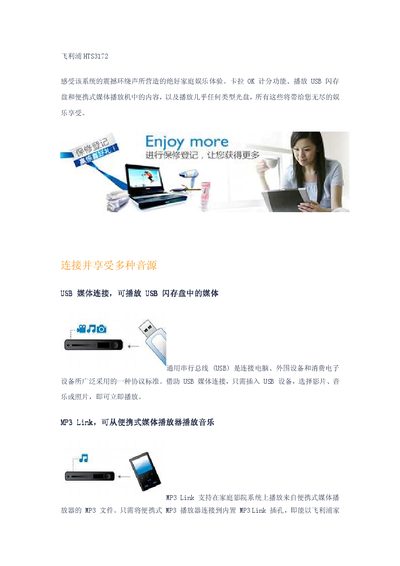

The manual describes the HTS3172 home theater system’s features, including USB media playback, MP3 Link support for portable players, built‑in DTS and Dolby Digital decoding, Dolby Pro Logic II surround processing, and a Class‑D power amplifier. It also explains karaoke scoring, DivX Ultra video playback, and FM tuner functions.
Technical specifications are listed, covering audio and video formats, speaker connections with Easy‑Fit colored connectors, power requirements, speaker impedance and frequency ranges, dimensions, weight, and included accessories such as remote control and quick‑start guide. This manual is written in Chinese.
| Total power (RMS) | 200 W |
|---|---|
| Output power (RMS) | 4x25W+2xS0W |
| DAC converter (audio) | 12‑bit, 108 MHz |
| DAC converter (high‑resolution) | 24‑bit, 192 kHz |
| Frequency response | 45 – 18000 Hz |
| Signal‑to‑noise ratio | >60 dB |
| Power supply | 120/230 V AC, 50/60 Hz |
| Standby power consumption | <1 W |
| Satellite speaker impedance | 4 Ω |
| Center speaker impedance | 8 Ω |
| Subwoofer impedance | 8 Ω |
| Satellite speaker frequency range | 150 – 20000 Hz |
| Center speaker frequency range | 150 – 20000 Hz |
| Subwoofer frequency range | 45 – 150 Hz |
| Dimensions (W×H×D) | 360 mm × 55 mm × 332 mm |
| Weight | 2.64 kg |
Insert the USB device, select the video, music, or photo, and it will play immediately.
Yes, the system is DivX Ultra certified and can play DivX‑encoded video with subtitles, multiple audio tracks, and menus.
Standby power consumption is less than 1 watt.
