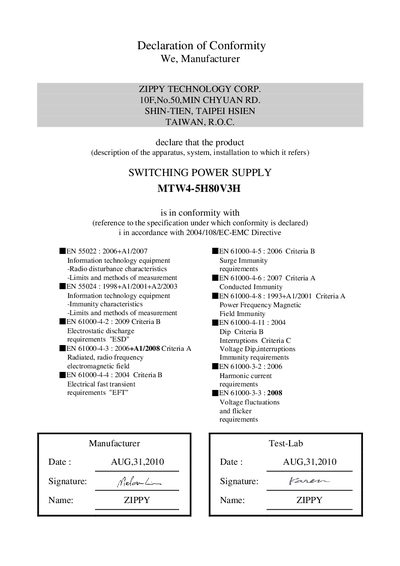

Declaration of Conformity We Manufacturer ZIPPY TECHNOLOGY CORP. 10F No.50 MIN CHYUAN RD. SHIN-TIEN TAIPEI HSIEN TAIWAN R.O.C

The file is the EMC certificate for MTW4-5H80V3H

About this manual

This document declares that the Zippy Technology MTW4-5H80V3H switching power supply meets the requirements of the EMC Directive 2004/108/EC and related EN standards. It lists the applicable standards (e.g., MBEN 55022, MBEN 55024, EN 61000‑4‑2, etc.) and provides the test results that demonstrate compliance.

The report includes general product information, test methodology, test facility details, and the results of conducted and radiated emissions, ESD, surge, and immunity tests. It also records the test date (31 Aug 2010) and the responsible test engineer.

What's inside

Test Report Certification
General Information
Tested System Details
Test Methodology
Electronic‑Magnetic Interference Test
Conducted Power Line Test
Radiated Emission Test
ESD Measurement
Surge Immunity Test
EMI Reduction Method

Specifications

Model Number	MTW4-5H80V3H
Product Type	Switching Power Supply
Input Voltage	115Vac/60Hz, 230Vac/50Hz
Power Rating (Test Load)	1780W
FCC ID	N/A

Frequently asked questions

When was the conformity test performed?

The test was performed on 31 August 2010.

What is the input voltage range of the power supply?

The power supply operates from 115 V AC 60 Hz or 230 V AC 50 Hz.

What is the power rating of the resistor load used in testing?

The resistor load used in testing is rated at 1780 W.
