Zippy PSL-6850P Switching Power Supply Data Sheet

About this manual

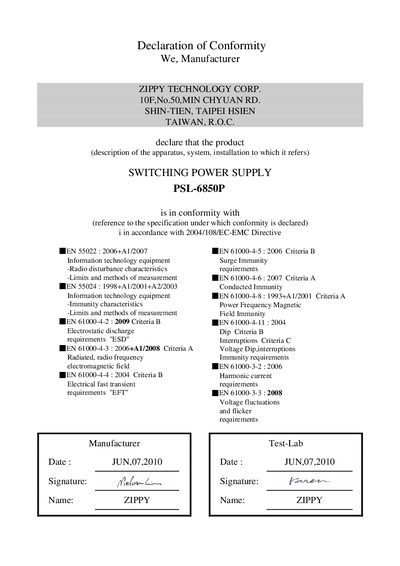

This document presents the compliance certification for the Zippy PSL-6850P switching power supply, including declarations of conformity to EMC directives and detailed test results. It lists the applicable standards (EN 55022, EN 55024, EN 61000 series) and the measurement procedures used during testing.

The report also contains general product information, test system details, and technical specifications such as input voltage range, power‑cord length, and load power. Appendices provide circuit diagrams, a user manual reference, and EMI reduction methods applied during testing.

What's inside

• Test Report Certification
• General Information
• Tested System Details
• Test Methodology
• Conducted Power Line Test
• Radiated Emission Test
• ESD Measurement
• Harmonic Current Requirements
• Surge Immunity Test
• EMI Reduction Method

Specifications

Frequently asked questions

Which standards were used for the compliance testing?

The device was tested according to EN 55022, EN 55024 and the EN 61000 series regulations.

What is the input voltage range of the PSL‑6850P?

It accepts 115 Vac/60 Hz or 230 Vac/50 Hz input.

What is the length and type of the power cord?

The power cord is a non‑shielded, detachable cable 1.5 m long.

What is the power rating of the electronic load used in testing?

The electronic load used for testing is rated at 850 W.
