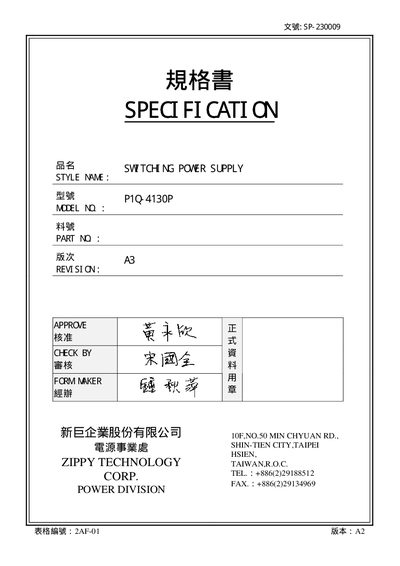

this document is the specification of zippy p1q- 4130p switching power supply
This document defines the performance characteristics of the Zippy P1Q-4130P single‑phase, 130 W, 6‑output level switching power supply. It covers input voltage (100 ~ 240 VAC), frequency (50‑60 Hz), inrush current, power factor correction, and detailed output specifications for +5 V, +12 V, +3.3 V and +5 VSB rails.
The guide also describes protection mechanisms (over‑power, over‑voltage, short‑circuit), sequencing, signal requirements, environmental limits (0‑45 °C), safety compliance (UL1950, TUV EN‑60950, FCC Part 15, CISPR 22), reliability data (MTBF 114,400 h) and mechanical dimensions (40.5 × 100 × 190 mm).
| Input voltage range | 100 ~ 240 VAC |
|---|---|
| Input frequency range | 50 ~ 60 Hz |
| Inrush current | 60 A @110 VAC / 80 A @220 VAC |
| Output voltage +5 V regulation tolerance | +5 % / -5 % |
| Output voltage +12 V regulation tolerance | +5 % / -6 % |
| Maximum output power | 130.5 W |
| Typical efficiency | 65 % at 115 V full load |
| Physical dimensions | 40.5 mm × 100 mm × 190 mm (H × W × D) |
| MTBF | 114,400 hours at 45 °C, 115/230 VAC full load |
| Operating temperature range | 0 °C to 45 °C |
The power supply accepts a full input voltage range of 100 ~ 240 VAC.
The +5 V output is regulated within +5 % to -5 % of the nominal voltage.
Typical efficiency is about 65 % when operating at 115 V full load.
