NORCO MITX-6682 Embedded Board User Manual

This manual introduces the features and characteristics of MITX-6682 embedded board.

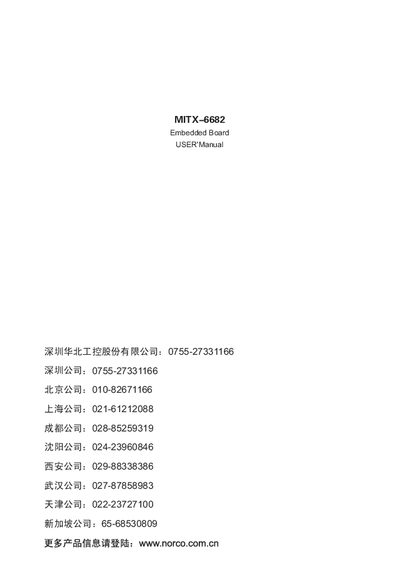

NORCO MITX-6682 Embedded Board User Manual - cover page
Brand
MITX-6682
Category
Other device
Document type
User Manual
Language
Chinese
Pages
57
File format
PDF
File size
3 MB
Published
24 January, 2012
Updated
01 October, 2023
MD5 checksum
B44F24589AF99AAB2B8900AC2EA8D908
PDF
NORCO MITX-6682 Embedded Board User Manual PDF

About this manual

The MITX-6682 is a Mini‑ITX low‑power industrial board built around an AMD LX700 CPU and CS5536 southbridge. It supports a single DDR333/400 DIMM up to 1 GB, offers Mini‑IDE, CompactFlash, USB 2.0, Ethernet, PCI and audio interfaces, and is designed for POS, kiosk and other embedded applications.

This manual provides the declaration of conformity, an introduction to the board, step‑by‑step installation instructions, BIOS configuration guidance, a description of all external connectors, accessory information and safety precautions for handling and operating the product. This manual is written in Chinese.

What's inside

  • Declaration of Conformity
  • Introduction
  • Installation
  • BIOS Settings
  • External Interfaces
  • Accessories
  • Safety Precautions

Specifications

Board size170 mm x 170 mm
CPUAMD LX700
Maximum memory1 GB DDR333/400
USB ports4 × USB 2.0
EthernetRealtek 8100C 10/100 Mbit
