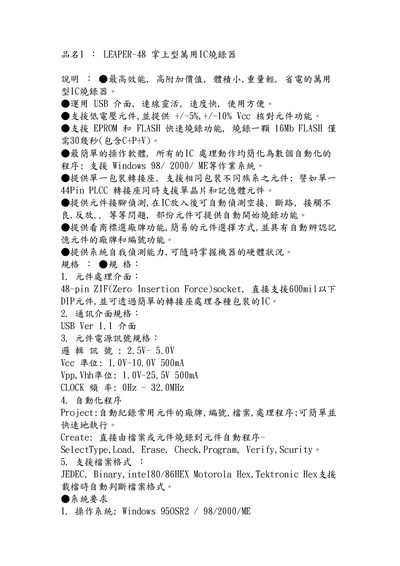

LEAPER-48 is a compact, lightweight, and power-saving handheld universal IC programmer. It utilizes a USB interface for flexible and fast connection. It supports low-voltage components and offers quick programming for EPROM and FLASH. The device comes with user-friendly software and automated procedures, supporting various file formats and compatible with Windows operating systems.
The LEAPER-48 is a compact, lightweight handheld IC programmer that connects via USB 1.1 and supports a wide range of IC packages, including 48‑pin ZIF sockets and DIP devices under 600 mil. It offers automated programming functions such as load, erase, check, program, verify and security, and can detect pin shorts, opens, and misplacements.
The device runs on Windows 95/98/2000 (and later) systems with at least 64 MB RAM and 30 MB free disk space. Power is supplied from a 12 V DC adapter (1.5 A) or 90‑260 VAC auto‑switching input. Physical dimensions are roughly 16 cm × 11 cm × 4.5 cm and it weighs about 0.5 kg. This manual is written in Chinese.
| Socket type | 48‑pin ZIF (Zero Insertion Force) |
|---|---|
| Supported DIP size | up to 600 mil |
| USB interface | USB 1.1 Full |
| Vcc voltage range | 1.0 V‑10.0 V, 500 mA |
| VYpp/VYhh voltage range | 1.0 V‑25.5 V, 500 mA |
| Clock frequency | 0 Hz‑32.0 MHz |
| Minimum RAM | 64 MB |
| Hard disk space required | ≥ 30 MB |
| Dimensions | 16 cm × 11 cm × 4.5 cm |
| Weight | 0.5 kg |
| Operating temperature | 0 °C‑45 °C |
| Power consumption | 24 W max |
| Input voltage | 90‑260 VAC auto‑switching |
| Supported IC families | EPROM, EEPROM, FLASH |
| Supported file formats | JEDEC, Binary, Intel HEX, Motorola HEX, Tektronix HEX |
It supports EPROM, EEPROM and FLASH devices, with voltage verification tolerances of ±5 % to ±10 %.
The device works with Windows 95, 98, 2000 and later Windows versions.
It can be powered from a 12 V DC, 1.5 A supply or from 90‑260 VAC auto‑switching input.
The unit measures about 16 cm × 11 cm × 4.5 cm and weighs roughly 0.5 kg.
