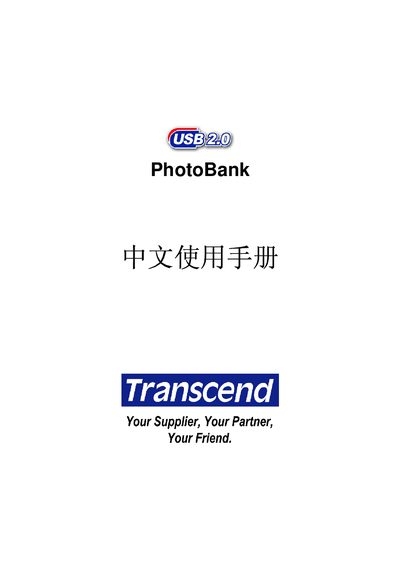

PhotoBank User Manual, introduces PhotoBank's features, system requirements, usage methods, etc
The PhotoBank is a compact USB2.0 external storage device that supports a variety of flash memory cards and includes a built‑in 1.8" hard drive (20 GB or 40 GB). It connects via a standard USB port and works with Windows, Mac OS, and standalone mode, offering high‑speed data transfer up to 480 Mbps.
The manual covers standalone operation, file transfer between memory cards and the device, battery charging, transformer configuration for different regions, driver installation for various Windows versions and Mac OS, as well as troubleshooting, specifications, and warranty information. This manual is written in Chinese.
| Power Supply | 5 V / 2 A via USB |
|---|---|
| Battery | Rechargeable Li‑ion 2200 mAh |
| Card Slots | CF Type I/II, SM/MMC/SD/MS |
| LCD Display | Blue backlight, monochrome |
| Storage Temperature | -40 °C – 70 °C |
| Certifications | FCC Class B, CE, BSMI |
| Dimensions | 110 mm × 85 mm × 22 mm |
| Weight | 235 g (20 GB) / 247 g (40 GB) |
Insert the memory card, select the first icon, choose the card slot, and follow the prompts to transfer the files; do not remove the card until the transfer is complete.
It uses a 2200 mAh rechargeable lithium battery, and a full charge takes about four hours.
The internal hard drive must be formatted as FAT32 for the device to operate correctly.
Press the Reset key to reactivate the PhotoBank.
