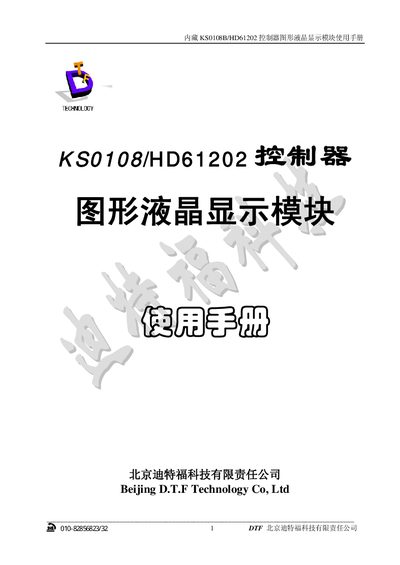

This document is an instruction manual for the KS0108B/HD61202 controller graphic LCD display module, which explains the precautions for using the product, handling of protective film, installation of pads, anti-static measures, assembly operation precautions, soldering procedures, and the use and maintenance of the module.
This manual provides safety guidelines, handling precautions, and detailed assembly instructions for the KS0108B/HD61202 graphic LCD module. It explains how to protect the module from static electricity, proper soldering practices, and recommended storage conditions.
The document also describes the module's electrical specifications, pin definitions, power supply requirements, and recommended troubleshooting steps. Technical notes on temperature compensation, backlight voltage, and repair services are included. This manual is written in Chinese.
| Logic power supply (VDD) | 5 V |
|---|---|
| LCD driver voltage (VEE) | Adjustable negative voltage, e.g., –18 V (7918) or –5 V to –26 V |
| Operating temperature range | -10 °C to +35 °C |
| Recommended humidity for operation | ≈60 % RH |
Store the module between –10 °C and +35 °C, in a dark place away from strong light.
The module uses three power supplies: a 5 V logic supply (VDD), a negative LCD‑driver voltage (VEE), and a LED backlight supply of about 3.8 V–4.3 V.
Use a soldering iron temperature below 280 °C and keep each solder joint under 3–4 seconds.
