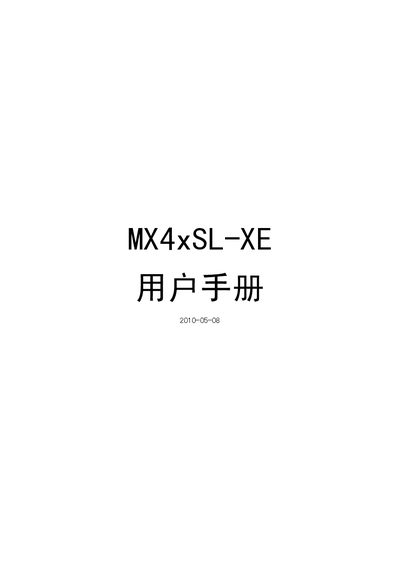

MX4xSL-XE User Manual, introduces the overall description, FPGA logic resources, FPGA external interface connections, quick application guide, control software, system hardware and other contents of the development platform.
The MX4xSL‑XE board is built around high‑capacity Altera Stratix II/IV FPGAs and provides a rich set of external interfaces, including 1.8 V SO‑DIMM DDR2 memory, PCI/PCI‑X, and PCI‑Express x4 slots. The manual describes the board architecture, connection details, and configuration procedures.
Key sections cover system overview, quick start usage, control software, hardware layout, and revision history. Detailed instructions are provided for configuring the FPGA via SD‑card files, USB controller setup, and reset options. This manual is written in Chinese.
| Supported FPGA devices | EP3SL200, EP3SL340, EP4SE530, EP4S820 |
|---|---|
| Memory type | 1.8 V SO‑DIMM DDR2‑533 up to 2 GB |
| PCI/PCI‑X interface | 64‑bit, 133 MHz |
| PCI‑Express interface | Gen1 x4 |
| USB controller | Cypress EZ‑USB FX2 LP |
The board supports Altera Stratix II/IV devices: EP3SL200, EP3SL340, EP4SE530 and EP4S820.
It uses a 1.8 V SO‑DIMM DDR2‑533 slot that can accommodate up to 2 GB of memory.
The board includes a Cypress EZ‑USB FX2 LP USB controller.
The board provides a PCI‑Express Gen1 x4 interface.
