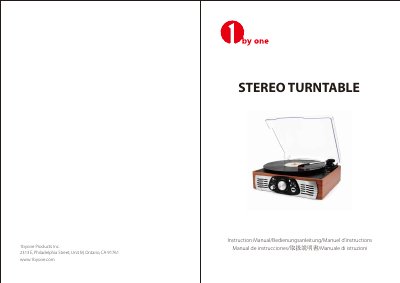

The 1byone Stereo Turntable Instruction Manual provides setup, operation, USB playback, and troubleshooting guidance.
This manual explains how to connect the supplied AC adapter, install the turntable, and use the controls for playing records, selecting speeds (33/45/78 RPM), and adjusting volume. It also covers the 45 RPM adapter, USB playback of MP3 files, recording to USB, and using the RCA audio‑out to connect to external audio equipment.
Safety instructions, stylus replacement, power‑management (auto‑standby after 15 minutes), and a detailed troubleshooting guide are included, along with technical specifications and disposal information.
| AC Input Voltage | 100‑240 V 50/60 Hz |
|---|---|
| DC Output (Adapter) | 9 V 600 mA |
| Record Speed Options | 33, 45, 78 RPM |
| USB File Format Support | MP3 |
| Phono Power Output | 0.25 W × 2 RMS |
| USB Power Output | 1.5 W × 2 RMS |
Use a standard RCA cable: plug the red and white connectors into the AUDIO OUT RCA Jacks on the rear of the turntable and the other end into the AUX INPUT of your audio device.
Lift the tone arm, press the red stylus holder to release it, remove the old holder, place the new red stylus holder under the cartridge housing, and snap it into place.
The supplied adapter requires an AC input of 100‑240 V at 50/60 Hz and provides a DC output of 9 V 600 mA.
The turntable plays USB devices that contain MP3 files.
