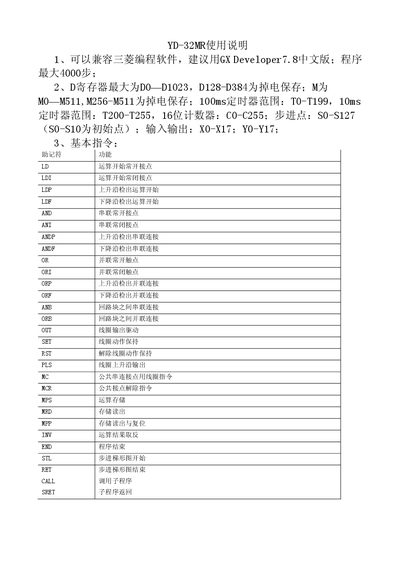

YD-32MR is a controller that can be used with Mitsubishi programming software. It has a maximum program step of 4000 steps and supports D registers, M registers, timers, counters, step points, input and output functions. The document provides basic instructions and instruction examples, as well as PLC download cable wiring and IO wiring diagram. It also explains the setup and reading methods for analog output, analog input, and high-speed counting input.
This manual describes the YD‑32MR programmable logic controller, its compatible Mitsubishi modules and the GX Developer 7.8 programming environment. It lists the available registers, timers, counters and basic instruction set used to create programs up to 4000 steps.
The document also details the analog and digital I/O modules, their voltage ranges, resolution and wiring connections, as well as component capacities such as memory size and register limits. It includes notes on setting dates and times, and provides reference tables for instruction functions and data handling. This manual is written in Chinese.
| Maximum program steps | 4000 |
|---|---|
| D register range | D0–D1023 |
| M register range | M0–M511 |
| Timer range | TO0–TO199, T200–T255 |
| 16‑bit counter range | C0–C255 |
| Analog input voltage range | 0‑5 V |
| Analog input resolution | 12‑bit |
The controller can handle up to 4000 program steps.
D registers are addressed from D0 to D1023.
The PLC provides analog inputs with a 0‑5 V range and 12‑bit resolution.
Timers are available as TO0‑TO199 (100 ms) and T200‑T255 (10 ms).
