AMDP-X/F series electric motor protector is produced by Shenyang Xinwei Electric Co., Ltd. It can protect the motor from overload, short circuit, phase loss, stalling, unbalanced current, zero sequence, underload, overvoltage and undervoltage. It also has communication interface, 4-20mA output and running status output.
The AMDG‑X/F series motor protection device provides comprehensive protection functions such as ground fault, short‑circuit, phase‑sequence, overload and imbalance detection. It includes a DSP core, LED indicators, and supports multiple communication interfaces for easy integration.

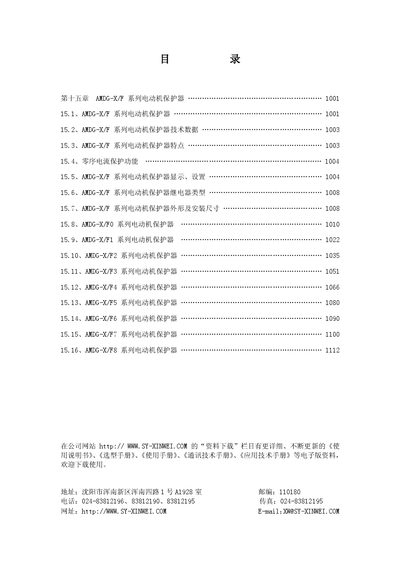

The manual covers installation dimensions, wiring diagrams, parameter settings, LED indicator functions, fault diagnosis, and technical specifications. Communication options include MODBUS, RS‑485 and PROFIBUS, and the device operates over a wide temperature range with low power consumption. This manual is written in Chinese.
| Operating Voltage (AC) | 85V‑265V |
|---|---|
| Operating Voltage (DC) | 85V‑265V |
| Operating Temperature | -20°C to 50°C |
| 4‑20 mA Output Channels | 4 channels |
It provides ground fault, short‑circuit, phase‑sequence, overload, and current‑imbalance protection.
The front panel includes a five‑digit LED display and additional indicator LEDs for status and faults.
The device operates from –20 °C to 50 °C.
