This document describes the features and characteristics of the 80-25213-12 DC brushless motor, including three-phase, six-step, full-wave, Y-shaped coil winding, sintered neodymium iron boron permanent magnet rotor, and with/without hall effect.
The 80-25213-12 is a brushless DC motor featuring a Y‑shaped coil winding, sintered cobalt‑iron‑boron permanent‑magnet rotor, and optional Hall sensor or sensor‑less operation. It provides a peak current of 13.7 A and can reach up to 3000 rpm under rated conditions.

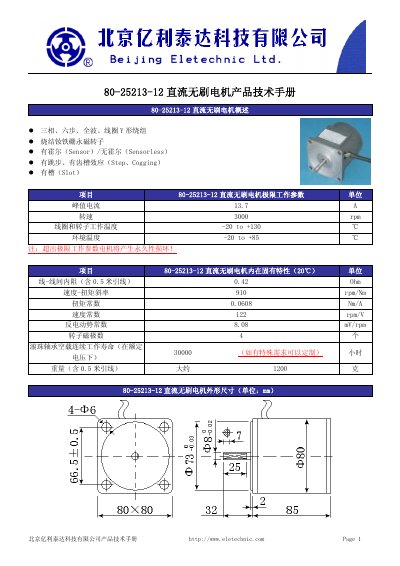

The manual details the motor's electrical connections, Hall‑sensor output waveforms, load performance curves, and dimensional data. It also includes safety notes such as the need for external cooling when surface temperature exceeds 85 °C. This manual is written in Chinese.
| Peak Current | 13.7 A |
|---|---|
| Maximum Speed | 3000 rpm |
| Coil & Rotor Working Temperature | -20 °C to +130 °C |
| Ambient Temperature Range | -20 °C to +85 °C |
| Phase Resistance (incl. 0.5 m lead) | 0.42 Ω |
| Torque Constant | 0.0608 Nm/A |
| Speed Constant | 122 rpm/V |
| Rated Voltage | 12 V |
| Maximum Output Power | 62 W |
The motor is rated for a working voltage of 12 V.
The motor can deliver a maximum output power of 62 W.
The motor’s peak current is 13.7 A.
An external fan or other cooling device must be installed when the surface temperature is above 85 °C.
