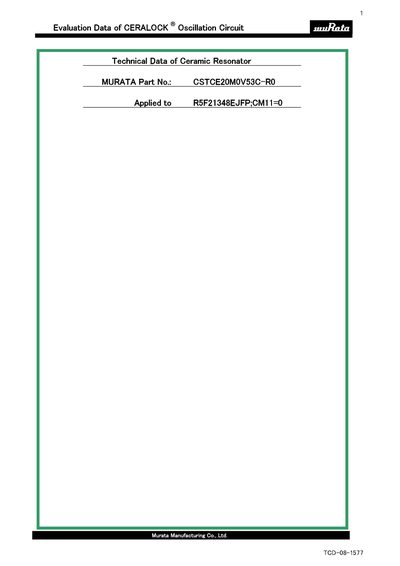

This document is about the evaluation data of CERALOCK® Oscillation Circuit, including technical data of ceramic resonator, IC name, load capacity, return resistance, limiting resistance, power supply voltage range, temperature range and other information.
This document provides evaluation data for the Murata CSTCE20M0V53C-RO ceramic resonator used in the CERALOCK® oscillation circuit. It includes test conditions, measurement methods, and results such as supply voltage range, temperature range, and input voltage levels.
Key specifications include a supply voltage range of 2.7 V to 5.5 V, operating temperature from –40 °C to +125 °C, input high voltage (VIH) of 1.7 V, input low voltage (VIL) of –0.2 V, resonant capacitances of 15 pF, and a typical oscillation frequency around 8 MHz. The report also details rise time, frequency correlation, and other performance parameters.
| Part Number | CSTCE20M0V53C-RO |
|---|---|
| Supply Voltage Range | 2.7 to 5.5 V |
| Input Low Voltage (VIL) | -0.2 V |
| Resonant Capacitance C1 | 15 pF |
| Resonant Capacitance C2 | 15 pF |
| Rf (Series Resistance) | No mount |
| Rd (Load Resistance) | Short |
| Frequency Correlation | < 0.1 % |
The resonator operates with a supply voltage ranging from 2.7 V to 5.5 V.
