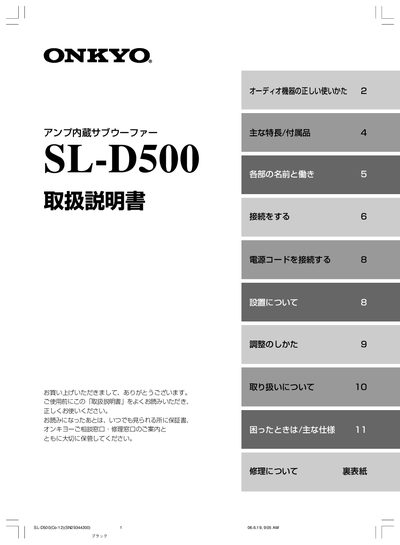

This document provides instructions for the correct use of the audio device SL-D500 (Co-12) (SN29344300), including its main features, accessories, names and functions of various parts, connection methods, power cord connection, installation methods, adjustment methods, handling instructions, troubleshooting, main specifications, and repair methods.
This manual explains safety precautions for the SL‑D500 subwoofer, including warnings about fire, electric shock, and proper handling of the power cord and cabinet. It also details how to clean, inspect, and maintain the unit safely.
Installation and connection sections describe where to place the subwoofer for optimal bass, how to connect it to an AV receiver or amplifier using the supplied bin cable, and how to use the high‑frequency cut filter and DIRECT switch. The document finishes with a specifications table, accessories list, and warranty/repair information. This manual is written in Japanese.
| Power supply | AC100V (50/60 Hz) |
|---|---|
| Reproduction frequency range (FILTER) | 25 Hz – 100 Hz |
| Reproduction frequency range (DIRECT) | 25 Hz – 1.5 kHz |
| Power consumption | 55 W |
| Dimensions (W × H × D) | 285 mm × 476 mm × 447 mm |
| High‑frequency cut filter range | 50 Hz – 200 Hz (adjustable) |
| Maximum output | 100 W (4 Ω, JEITA) |
| Weight | 19 kg |
| Speaker input impedance | 4.7 kΩ |
| Line input impedance | 54 kΩ |
