This document is a quick start guide for the Shark®100 meter, which introduces the steps of mechanical installation and electrical wiring, as well as how to set up the configuration mode and modify the password through the front panel buttons. In addition, it provides examples of CT and PT settings, as well as instructions for wiring.

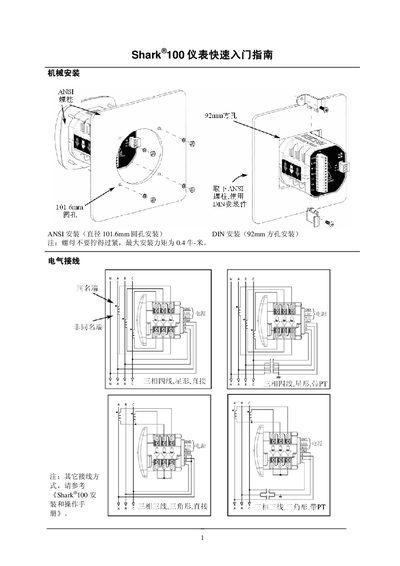

The guide provides step‑by‑step instructions for installing the Shark 100 instrument table, including mounting hole sizes, torque limits, and electrical wiring. It also covers how to use the front‑panel buttons to access menus and configure parameters.
Key sections describe entering configuration mode, entering a four‑digit password to modify settings, adjusting CT and PT parameters, and saving or discarding changes. Wiring diagrams and connection options are also included. This manual is written in Chinese.
| Square mounting hole size | 92 mm |
|---|---|
| Round mounting hole size | 101.6 mm |
| Maximum installation torque | 0.4 N·m |
Press MENU on any reading screen to open the main menu, then press ENTER to display the configuration mode (CFG) screens such as SCRL, CT, PT.
A four‑digit password is required before any parameter can be changed.
Press MENU twice, then ENTER when prompted with “Stor ALL? YES” to store all settings.
