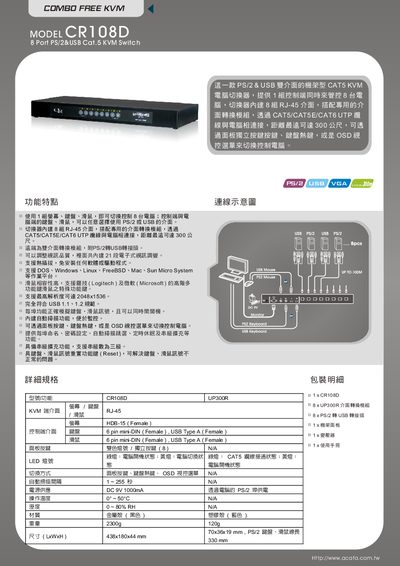

The CR108D is an 8‑port KVM switch that supports both PS/2 and USB keyboard/mouse connections. It uses 8 RJ‑45 ports with a dedicated interface module and can be linked with CAT5/CAT5E/CAT6 UTP cables for distances up to 300 m. The switch offers hot‑key switching, OSD control, and a maximum video resolution of 2048 × 1536.
The device is powered by a DC 9 V, 1000 mA supply via the PS/2 connector. Physical dimensions are 438 × 180 × 44 mm and it weighs 2.3 kg. It is compatible with a wide range of operating systems including DOS, Windows, Linux, FreeBSD, Mac and Sun Microsystems platforms. This manual is written in Chinese.
| Maximum video resolution | 2048x1536 |
|---|---|
| Supported operating systems | DOS, Windows, Linux, FreeBSD, Mac, Sun Microsystems |
| Maximum cable length | 300 m (CAT5/5E/6 UTP) |
| Power supply | DC 9 V, 1000 mA |
| Dimensions (L×W×H) | 438 × 180 × 44 mm |
| Weight | 2.3 kg |
| Ports | 8 RJ‑45, 6‑pin mini‑DIN (keyboard), USB Type‑A (mouse) |
The switch can operate over CAT5/5E/6 UTP cables up to 300 meters.
It supports DOS, Windows, Linux, FreeBSD, Mac and Sun Microsystems systems.
It is powered by a DC 9 V, 1000 mA supply via the PS/2 connector.
The maximum resolution is 2048 × 1536.
