CR116D is a 16-port PS/2&USB dual-interface network KVM switch, which provides 1 set of control end (screen, keyboard, mouse) to control 16 computers at the same time. The switch has 16 RJ-45 interfaces and is equipped with a dedicated interface conversion module. Connect to the computer via CAT5/CAT5E/CAT6 UTP cable, the maximum distance can reach 300 meters, and you can switch the control computer via the panel independent button, keyboard shortcut, or OSD visual menu. The flagship machine is most suitable for enterprise large-scale machine room management.
The CR116D is a combo free KVM switch that supports both PS/2 and USB keyboards and mice, allowing control of up to 16 computers through a single console. It uses 16 RJ‑45 ports and a dedicated CAT5/CAT5E/CAT6 cable to transmit video and peripheral signals up to 300 m.

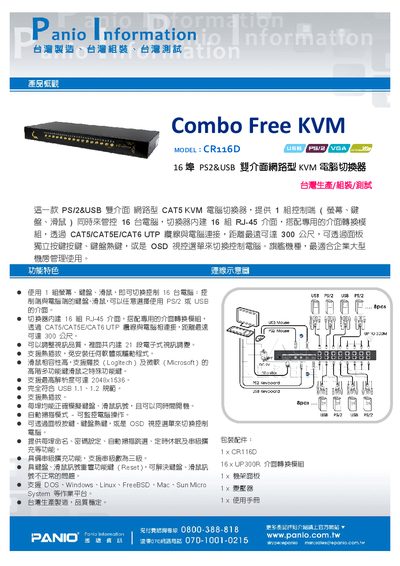

The manual describes installation steps, cable connections, supported resolutions (up to 2048×1536), hot‑plug capabilities, and compatible operating systems such as DOS, Windows, Linux, FreeBSD and macOS. It also lists the package contents and provides troubleshooting tips. This manual is written in Chinese.
| Number of ports | 16 PS/2 & USB ports |
|---|---|
| Maximum cable length | 300 m |
| Maximum resolution | 2048×1536 |
| USB compliance | USB 1.1/2.0 |
| Supported operating systems | DOS, Windows, Linux, FreeBSD, macOS |
It can control up to 16 computers simultaneously.
The CAT5/CAT5E/CAT6 cable can be up to 300 meters long.
The KVM supports a maximum resolution of 2048 × 1536.
