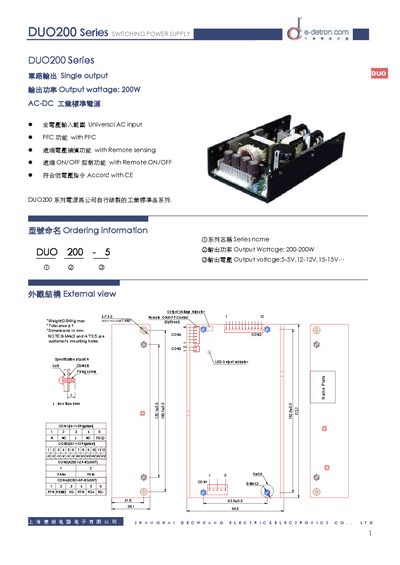

DUO200 Series power supply is a self-developed product with universal AC input range, PFC function, remote voltage compensation function, remote ON/OFF control function, in line with low voltage directive
The DUO200 Series is a compact AC‑DC power supply offering up to 200 W output power with selectable output voltages of 5 V, 12 V, 15 V, 24 V and 48 V. It features universal AC input, power factor correction, and optional remote ON/OFF control.
The manual lists detailed electrical specifications, safety and regulatory compliance, and includes wiring diagrams for remote control connections, derating curves, and environmental limits such as operating temperature and vibration tolerance.
| Output Wattage | 200 W |
|---|---|
| Output Voltage Options | 5 V, 12 V, 15 V, 24 V, 48 V |
| Input Voltage Range | AC 85‑264 V, DC 120‑340 V |
| Input Frequency | 50 Hz / 60 Hz |
| Efficiency | ≈ 75 % typical |
| Power Factor | 0.95 typical |
| Leakage Current | 1.5 mA max |
| Weight | 0.64 kg max |
The DUO200 Series provides an output wattage of 200 W.
It accepts a universal AC input of 85 V to 264 V and a DC input of 120 V to 340 V.
Yes, the unit offers an optional remote ON/OFF control feature.
