Yeli YPV-075-B Servo Motor Driver User Manual

The document describes the features and characteristics of the products.

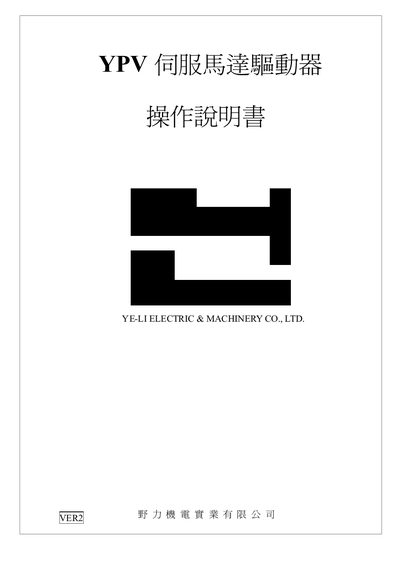

Yeli YPV-075-B Servo Motor Driver User Manual - cover page
Brand
ypv伺服马达驱动器
Category
Motor
Document type
User Manual
Language
Chinese
Pages
57
File format
PDF
File size
3.7 MB
Published
13 January, 2012
Updated
29 September, 2023
MD5 checksum
67D7D8B7C311ABE1BA869A3BA8D2535A
PDF
Yeli YPV-075-B Servo Motor Driver User Manual PDF

About this manual

This manual provides detailed guidance for the YPV series servo motor driver produced by Yeli Electric. It covers product inspection, nameplate information, installation precautions, wiring diagrams, and signal descriptions for proper setup and safe operation.

The document includes technical specifications such as input voltage, frequency, power rating, connector pin counts, and recommended environmental conditions. Appendices list connector pinouts and dimensions to assist technicians and end‑users during integration. This manual is written in Chinese.

What's inside

  • Product Inspection
  • Servo Motor Nameplate
  • Servo Driver Nameplate
  • Installation Precautions
  • Power Supply Precautions
  • Connector Wiring
  • Input Signal Wiring
  • Output Interface

Specifications

Input voltage200‑230 V AC
Frequency50/60 Hz
Phase3 Phase
Rated current3.5 A
Power output0.7571 kW
CN1 connector pins37 pins
Standard motor capacity (example)0.4 kW

Frequently asked questions

What is the input voltage range for the YPV‑075‑B driver?

The driver operates on an AC input voltage of 200‑230 V.

How many pins does the CN1 connector have?

The CN1 connector has 37 pins.

What is the rated power of the YPV‑075‑B driver?

The driver is rated at 0.7571 kW.

Download PDF (3.7 MB)
