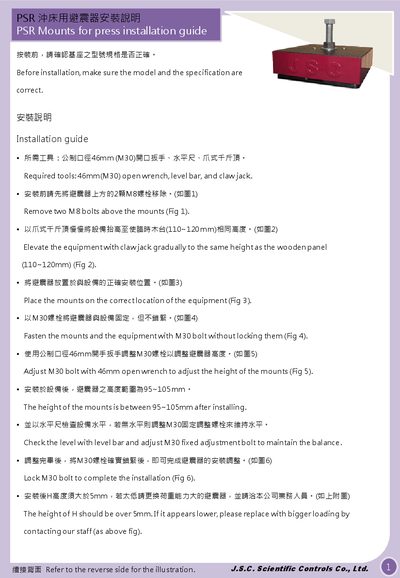

This instruction manual introduces the installation steps of PSR mounts.
This guide explains how to install the PSR shock‑absorber mounts on press equipment. Required tools include a 46 mm (M30) open wrench, a level bar, and a claw jack. The procedure covers removing the existing bolts, elevating the equipment, positioning the mounts, fastening with M30 bolts, and adjusting the height.
After installation the mount height should be between 95 mm and 105 mm. The guide also describes how to lock the bolts, verify level, and perform monthly maintenance checks to ensure proper height and rubber deflection.
| Mount height range after installation | 95~105 mm |
|---|---|
| Required wrench size | 46 mm (M30) |
| Bolt size for mounting | M30 |
| Adjustment method | Adjust M30 bolt with 46 mm open wrench |
You need a 46 mm (M30) open wrench, a level bar, and a claw jack.
Use a 46 mm open wrench to turn the M30 adjustment bolt until the mount height is between 95 mm and 105 mm.
The mounts should be set to a height between 95 mm and 105 mm.
