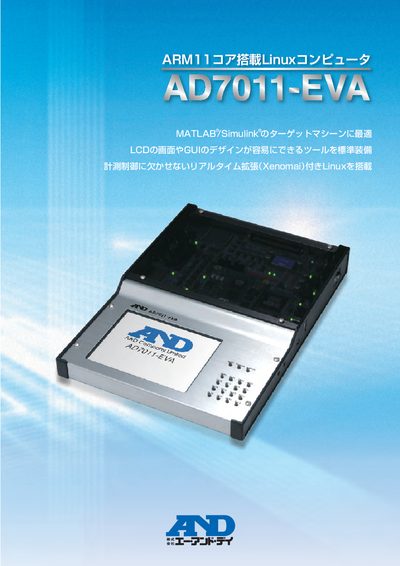

AD7011-EVA is a Linux computer with an ARM1136 core and rich I/O interfaces, which can be used for data acquisition and control.
The AD7011‑EVA is a Linux computer board equipped with an ARM1136‑core iMX31 processor, DDR memory, and a variety of I/O ports. It supports development with MATLAB/Simulink or Eclipse‑based C projects, and includes a drag‑and‑drop GUI tool (AD‑VirtualConsole) for creating user interfaces.
The board offers optional ZigBee wireless, multiple UARTs, Ethernet, USB, and a 5‑inch QVGA LCD with touch panel. Detailed hardware specifications, power requirements, and dimensions are provided, along with a list of standard accessories such as a quick‑start guide and development DVD. This manual is written in Japanese.
| CPU | Freescale iMX31 ARM 1136JF‑S, 532 MHz |
|---|---|
| Memory | DDR SDRAM 188 MB |
| Power Input | 12 V 3.8 A AC adapter (backup 3.0 V battery) |
| Operating Temperature | -70 °C |
| Board Size | 2810 mm × 287 mm (A4 size) |
| ZigBee Module | Optional wireless module |
Control programs can be built with MATLAB/Simulink or with Eclipse using C language.
The board runs Linux 2.6.19+ with the Xenomai real‑time extension.
Yes, a ZigBee module is offered as an optional accessory.
