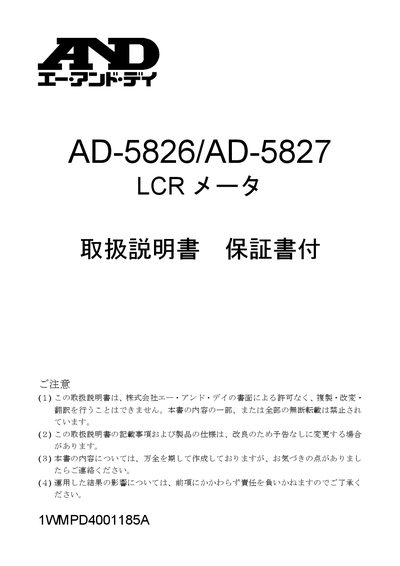

This is the instruction manual for AD-5826/AD-5827 LCR meter. It explains how to use the meter safely, the names of the parts, the LCD display, the measurement methods, the operating modes, the accuracy, the maintenance, and the specifications.
This manual provides instructions for using the AND AD-5826 and AD-5827 LCR meters. It includes safety guidelines, description of features, and detailed operation procedures such as measurement methods, calibration, data hold, and data memory functions.
The document also contains technical specifications, information on measurement ranges, accuracy, LCD display details, and warranty terms. Users are guided on battery replacement, fuse replacement, and proper handling of test leads. This manual is written in Japanese.
| LCD display resolution | 9999 count and 999 count twin large LCD |
|---|---|
| Accuracy (AD‑5826) | ±5 °C, 75 %RD at 23 °C |
Press the L/C/R switch; each press toggles the measurement mode among L (inductance), C (capacitance), and R (resistance).
Press the FREQ button; each press cycles through the available frequency settings (e.g., 120 Hz, 1 kHz for AD‑5826 or 100 Hz, 120 Hz, 1 kHz, 10 kHz for AD‑5827).
Press the HOLD button to freeze the current measurement value on the display; the indicator [DH] appears. Press HOLD again to release the hold.
