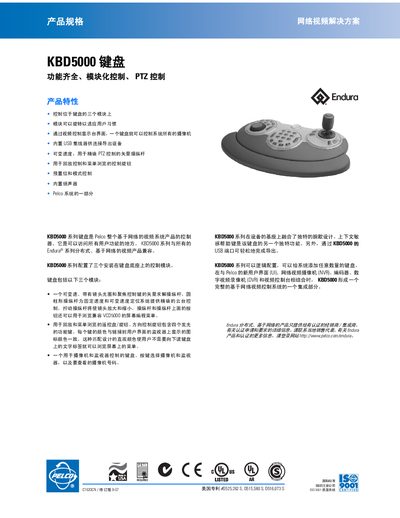

KBD5000 keyboard is a fully functional, modular control PTZ control product with variable speed vector joystick, control knob, preset position and mode control.
The KBD5000 is a modular, PTZ‑control keyboard designed for Pelco video surveillance systems. It features three interchangeable control modules, a variable‑speed vector joystick, dedicated playback and menu navigation knobs, and built‑in USB hubs for easy connectivity. The keyboard can be configured with multiple units and integrates with Endura distributed video products.
Technical specifications include a universal 100‑240 VAC input, 12 VDC output, 20 W power rating, multiple USB 2.0 ports, audio I/O, and optional wrist‑support brackets. Physical dimensions, environmental ratings, and certifications are listed for both wrist‑supported and non‑supported configurations. This manual is written in Chinese.
| Input voltage | 100‑240 VAC, 50/60 Hz |
|---|---|
| Output voltage | 12 VDC |
| Power output | 20 W |
| Input connector type | Universal |
| Output connector type | 2.5 mm barrel |
| USB upstream port | USB 2.0 (USBB type) |
| USB downstream ports | Two USB 2.0 (USBA type) |
| Audio output | Speaker or headphone, 8 Ω per channel |
| Dimensions (no wrist support) | 7.86" D × 14.78" W × 4.6" H |
| Weight (no wrist support) | 2.68 lb (1.22 kg) |
The keyboard operates from 100‑240 VAC at 50/60 Hz.
It has one USB 2.0 upstream port and two USB 2.0 downstream ports.
The keyboard measures 7.86 in deep × 14.78 in wide × 4.6 in high.
